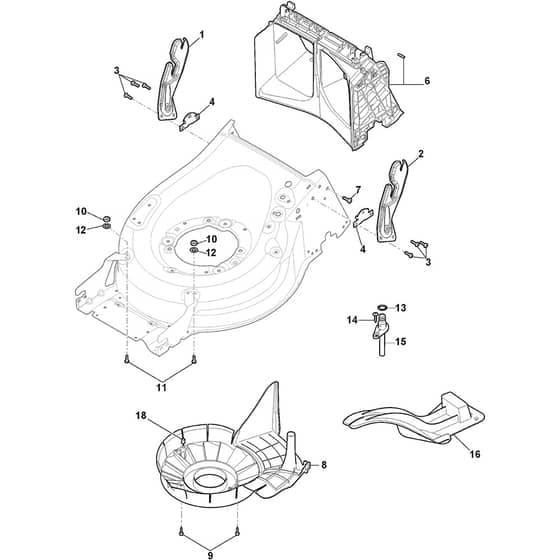

COMBI 955 V - 2022-2025 - 294557848/ST2 - Stiga Rotary Mower Protection Belt Diagram

Name: COMBI 955 V - 2022-2025 - 294557848/ST2 - Stiga Rotary Mower Protection Belt Diagram
SKU: combi_955_v_294557848_st2_protection_belt-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 955 V - 2022-2025 - 294557848/ST2 - Stiga Rotary Mower Protection Belt Diagram

Description

Stiga COMBI 955 V Parts Diagram

Product Name - COMBI 955 V

Model Year - 2022-2025

Model Type - MP1 554 WSVQ

Art.N - 294557848/ST2

Engine Model - ST 200 OHV Autochoke Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005271/0 Available to backorder	Bracket-Rh	£12.67 £10.56
2	MO381005273/0 Available to backorder	Left Bracket Black	£12.67 £10.56
3	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
6	MO381102204/1 Available to backorder	Rear Baffle Assembly	£27.11 £22.59
7	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
8	MO322060271/2 Available to backorder	Carter Mulching	£11.53 £9.61
9	MO112735645/0 Available to backorder	Screw	£1.82 £1.52
10	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO112815206/0 Available to backorder	Screw	£1.55 £1.29
12	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
14	MO112728697/0 In stock	Screw	£1.55 £1.29
15	MO322034002/0 Available to backorder	Washing Connection	£1.69 £1.41
16	MO322140246/0 Available to backorder	Deflector	£13.37 £11.14
18	MO122042073/0 Available to backorder	Belt Guard Bush	£1.69 £1.41
