COMBI 95 EL QF - 2020-2021 - 2D6209521/ST1 - Stiga Front Mower Cutting Deck Diagram

Description

Stiga COMBI 95 EL QF Parts Diagram

Product Name - Park 95 Combi EL QF

Model Year - 2020-2021

Model Type - 95C E QF

Art.N - 2D6209521/ST1

Engine Model -

	Part No.	Details
1	MO387561531/1 Available to backorder	Casing-Yellow 95C	£499.60 £416.33
2	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
4	MO387203001/0 In stock	Shaft Flange Assy	£122.46 £102.05
5	MO9945-0825-16 In stock	Screw	£2.40 £2.00
6	MO387203000/0 In stock	Shaft Flange Assy	£114.02 £95.02
7	MO1134-9117-01 Available to backorder	Blade Bar Assy (95C) Kit with 2 pieces	£107.75 £89.79
8	MO1134-9119-01 In stock	Blade Kit Assy 2 knivar.2 blade tips	£33.66 £28.05
9	MO1134-9054-01 In stock	Shear Bolt Kit 6 bultar.6 bolts+nuts	£8.59 £7.16
10	MO1134-6311-01 Available to backorder	Bolt 7.16” UNF	£2.94 £2.45
11	MO1134-6312-01 Available to backorder	Nut 7.16” UNF	£2.53 £2.11
12	MO1134-6211-01 Available to backorder	Washer	£3.10 £2.58
13	MO112692395/2 In stock	Screw	£3.25 £2.71
14	MO9600-0171-01 Available to backorder	Key 6 x 6 x 25 mm	£3.10 £2.58
15	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
16	MO1134-5400-04 Available to backorder	Spacer	£4.93 £4.11
17	MO1134-9127-01 In stock	Toothed Belt Pulley Sats 2 st.kit of 2	£50.68 £42.23
18	MO1134-5400-05 Available to backorder	Spacer	£6.77 £5.64
19	MO387178803/0 Available to backorder	Brake Disc	£73.20 £61.00

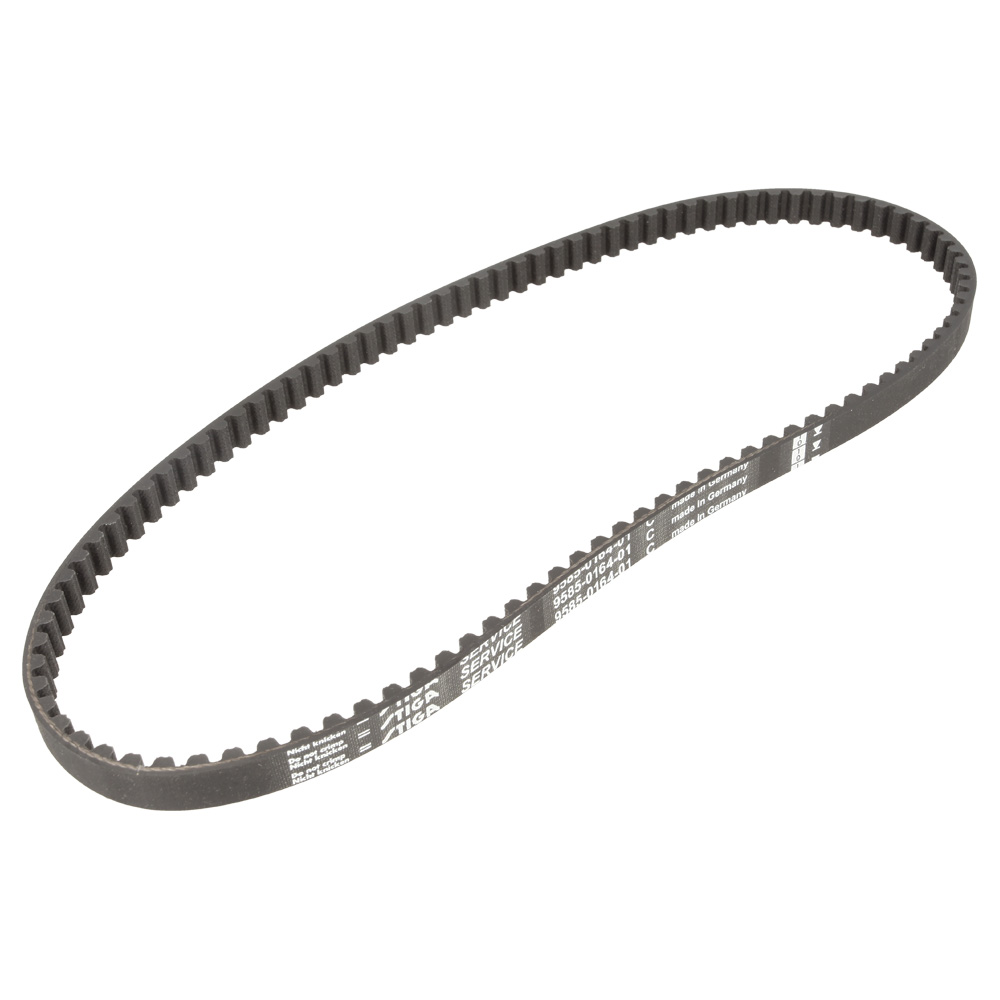

20	MO1134-9198-01 Available to backorder	Toothed Belt Replacing Service code 1134-9198-01	£28.27 £23.56
20	MO1134-9198-02 In stock	Toothed Belt Replacing Service code 1134-9198-02	£44.45 £37.04
21	MO1134-9241-01 In stock	Trapezoidal Belt - 2Wd For 2WD Models. Service code for Belt 135061518.0	£59.23 £49.36
21	MO1134-9246-01 In stock	Trapezoidal Belt - 4Wd Replacing Service code 1134-9246-01	£44.45 £37.04
96	MO114371432/1 Available to backorder	Decal "Stiga Combi 95 El Qf"	£8.72 £7.27
