COMBI 95 EL - 2015 - 13.2967-35 - Stiga Front Mower Cutting Deck Diagram

Description

Stiga COMBI 95 EL Parts Diagram

Product Name - DECK PARK 95 C EL

Model Year - 2015

Model Type - Deck Park 95 Combi EL

Art.N - 13.2967-35

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387561531/1 Available to backorder	Casing-Yellow 95C	£499.58 £416.32
3	MO1134-6229-01 Available to backorder	Mulch Plug 95C	£39.42 £32.85
6	MO387203000/0 In stock	Bearing Box Assy	£114.02 £95.02
7	MO1134-9117-01 Available to backorder	Blade Bar Assy (95C) Sats 2 st.kit of 2	£107.75 £89.79
8	MO1134-9119-01 Available to backorder	Blade Kit Assy 2 knivar.2 blade tips	£33.67 £28.06
9	MO1134-9054-01 Available to backorder	Shear Bolt Kit 6 bultar.6 bolts+nuts	£8.59 £7.16
10	MO1134-6311-01 Available to backorder	Bolt 7.16” UNF	£2.95 £2.46
11	MO1134-6312-01 Available to backorder	Nut 7.16” UNF	£2.53 £2.11
12	MO1134-6211-01 Available to backorder	Washer	£2.98 £2.48
14	MO387869259/0 Available to backorder	Front Guard Tube-Grey	£44.76 £37.30
15	MO9403-0025-80 Available to backorder	End Plug. Grey	£2.40 £2.00
16	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
18	MO1134-0240-01 Available to backorder	Shoulder Screw	£9.50 £7.92
19	MO387033103/0 Available to backorder	Bracket	£64.75 £53.96
21	MO337060024/0 Available to backorder	Transmission Cover-Grey	£40.82 £34.02
24	MO9945-0825-16 In stock	Screw	£2.40 £2.00
25	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
26	MO387605029/0 Available to backorder	Pulley Inkl. pos 31 - 42	£161.89 £134.91
27	MO9997-1070-12 In stock	Screw	£3.52 £2.93
28	MO1134-6209-01 Available to backorder	Bracket	£45.04 £37.53
29	MO1134-6205-02 Available to backorder	Shaft	£33.67 £28.06
30	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
31	MO112523040/0 In stock	Washer	£1.49 £1.24
32	MO1134-9128-03 Available to backorder	Toothed Belt Pulley	£71.80 £59.83
33	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
34	MO1134-3725-06 Available to backorder	Spacer H . 1.5 mm	£21.91 £18.26
35	MO1137-0117-01 Available to backorder	Pulley Ø . 154 mm	£112.62 £93.85
36	MO9997-0650-12 Available to backorder	Screw	£2.12 £1.77
37	MO9699-0030-02 In stock	Washer	£1.97 £1.64
38	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
39	MO112692395/2 In stock	Screw	£3.24 £2.70
40	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
41	MO1134-9198-01 Available to backorder	Toothed Belt	£28.28 £23.57
42	MO1134-5400-04 Available to backorder	Spacer	£4.93 £4.11
43	MO1134-9127-01 Available to backorder	Toothed Belt Pulley Sats 2 st.kit of 2	£50.68 £42.23
44	MO9959-0820-16 In stock	Screw	£1.55 £1.29
45	MO1134-6431-01 Available to backorder	Belt Guide	£15.84 £13.20
46	MO112154220/0 Available to backorder	Nut	£1.55 £1.29

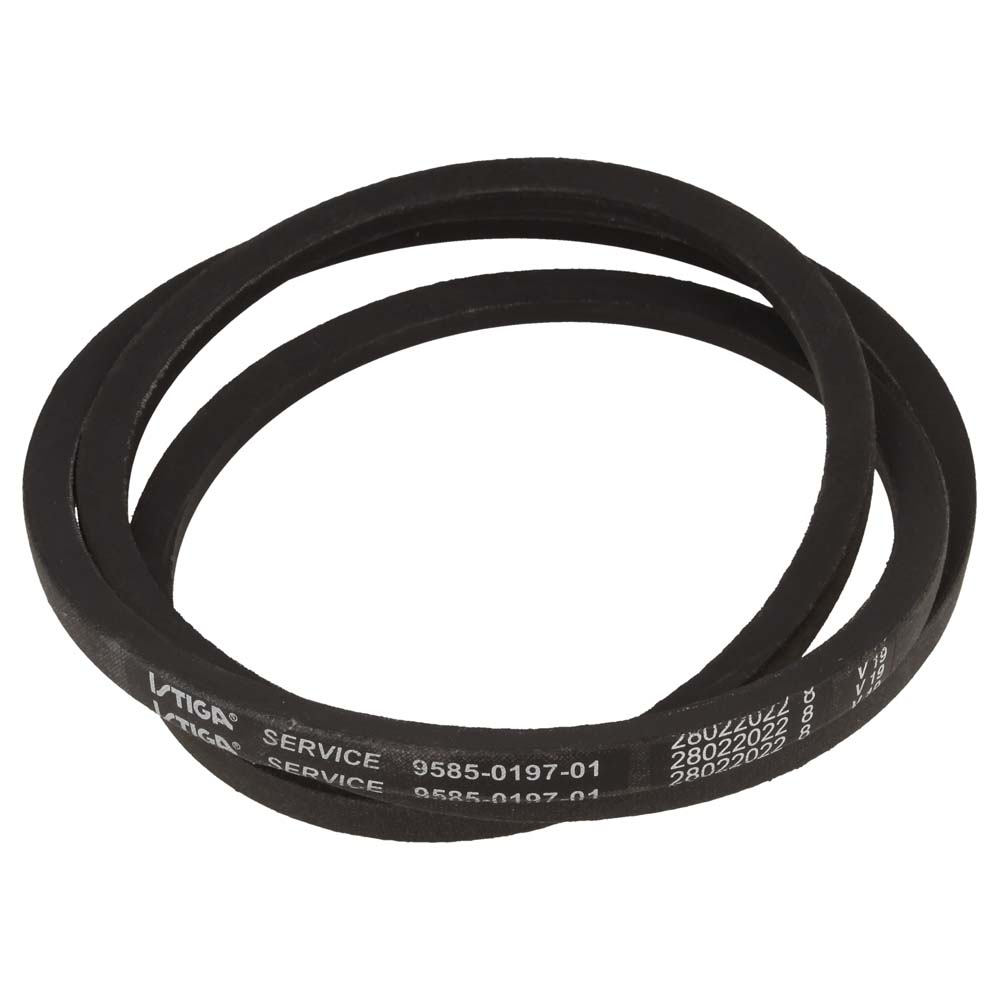

47	MO1134-9246-01 In stock	V-Belt Replaced by Service Code. 1134-9147-01	£44.45 £37.04

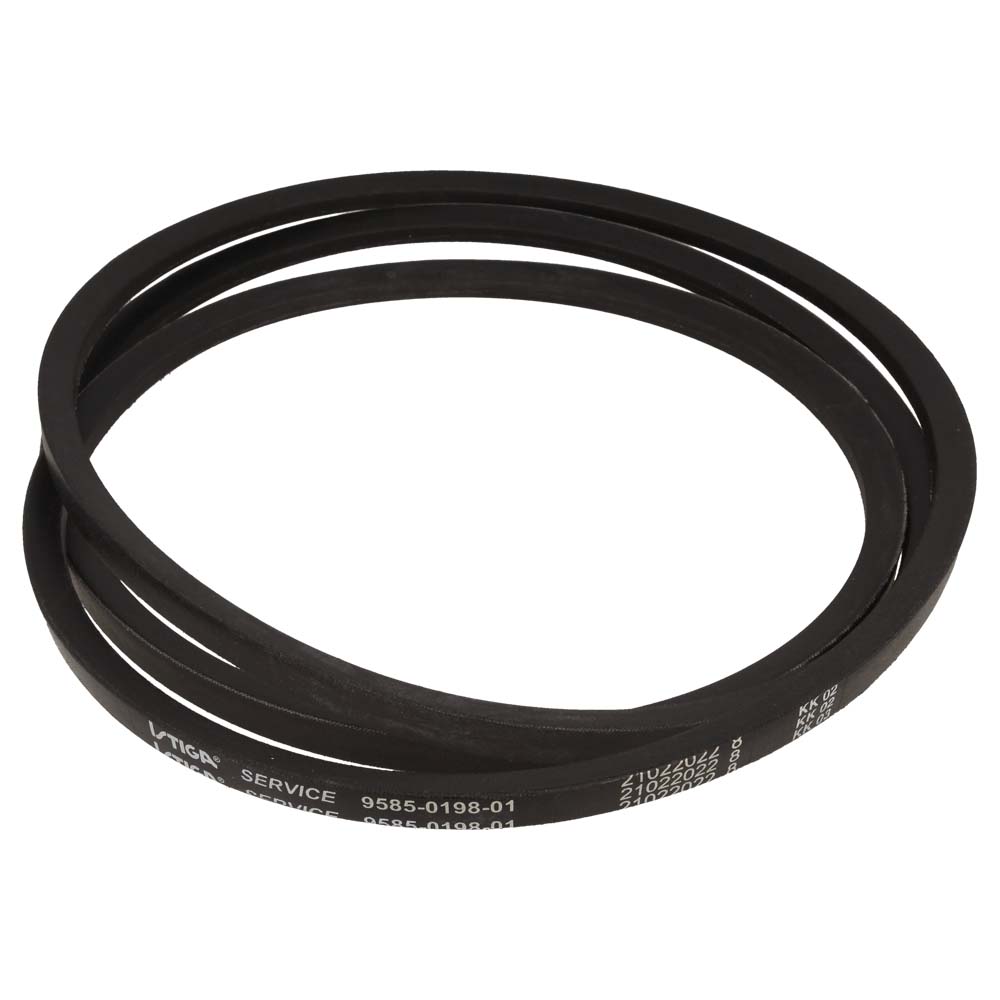

47	MO1134-9241-01 Available to backorder	V-Belt Replaced by Service Code. 1134-9148-01	£59.24 £49.37
51	MO1134-0240-00 In stock	Screw	£8.80 £7.33
52	MO337600002/0 Available to backorder	Belt Cover	£23.23 £19.36
53	MO9675-0016-02 Available to backorder	Starlock	£1.40 £1.17
54	MO1134-4620-02 Available to backorder	Nut	£7.96 £6.63
64	MO1134-6222-01 Available to backorder	Side Guard Tube [Grey]	£43.64 £36.37
