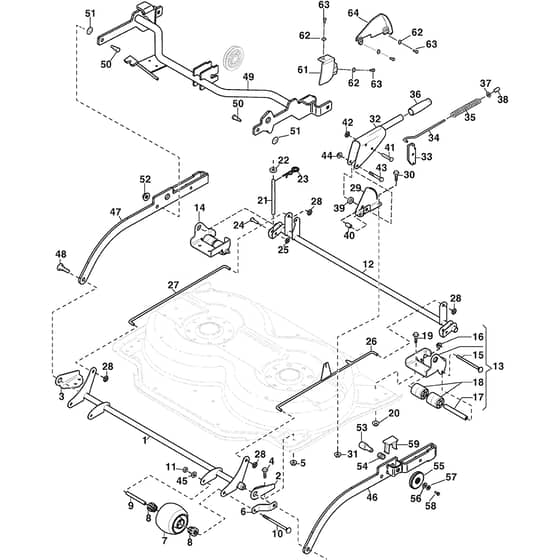

COMBI 85 M Q - 2022-2025 - 2D5808511/ST2 - Stiga Front Mower Deck Controls Diagram

Name: COMBI 85 M Q - 2022-2025 - 2D5808511/ST2 - Stiga Front Mower Deck Controls Diagram
SKU: combi_85_m_q_2d5808511_st2_deck_controls-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 85 M Q - 2022-2025 - 2D5808511/ST2 - Stiga Front Mower Deck Controls Diagram

Description

Stiga COMBI 85 M Q Parts Diagram

Product Name - COMBI 85 M Q

Model Year - 2022-2025

Model Type - 85C QF

Art.N - 2D5808511/ST2

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO387773609/0 Available to backorder	Front Bracket. Lh (Grey)	£11.18 £9.32
3	MO387773607/0 Available to backorder	Front Bracket. Rh (Grey)	£11.18 £9.32
6	MO387318275/0 Available to backorder	Guide-Grey	£5.21 £4.34
7	MO1134-4284-01 In stock	Wheel	£30.77 £25.64
8	MO1134-4319-01 In stock	Bearing	£6.64 £5.53
12	MO387000161/0 Available to backorder	Rear Axle (Grey)	£82.36 £68.63
13	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket	£56.32 £46.93
14	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket	£56.32 £46.93
15	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
17	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50
18	MO1134-9126-01 Available to backorder	Support Rollers Sats 2 st.kit of 2	£52.08 £43.40
21	MO137510321/0 Available to backorder	Pin	£7.96 £6.63
22	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
23	MO9598-2001-02 Available to backorder	Spring Pin	£4.78 £3.98
24	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
25	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
26	MO387000309/0 Available to backorder	Push Rod. Left	£38.00 £31.67
27	MO137033105/0 Available to backorder	Push Rod. Right	£23.58 £19.65
28	MO112604903/0 In stock	Washer	£1.55 £1.29
29	MO1137-0259-01 Available to backorder	Height Adjust Quadrant	£22.25 £18.54
30	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
31	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
32	MO387318273/0 Available to backorder	Height Adjust Lever-Grey	£47.87 £39.89
33	MO1134-6254-01 Available to backorder	Catch Assy	£10.98 £9.15
34	MO1134-5444-01 Available to backorder	Push Rod	£14.00 £11.67
35	MO1134-5445-01 Available to backorder	Spring	£16.82 £14.02
36	MO1134-5503-01 Available to backorder	Handle	£26.54 £22.12
37	MO9699-0087-02 In stock	Washer	£2.12 £1.77
38	MO1134-3051-01 Available to backorder	Locking Knob	£9.16 £7.63
39	MO1134-6286-03 Available to backorder	Spacer	£1.82 £1.52
40	MO1134-1565-16 Available to backorder	Spacer	£7.03 £5.86
41	MO9646-0105-22 Available to backorder	Rivet	£2.95 £2.46
42	MO9672-0006-02 Available to backorder	Lock Washer	£1.97 £1.64
43	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
46	MO387785233/0 Available to backorder	Grey Mower Deck Arm. Left	£114.73 £95.61
47	MO387106279/0 Available to backorder	Grey Mower Deck Arm. Right	£130.91 £109.09
48	MO1134-6279-01 Available to backorder	Shoulder Bolt	£2.26 £1.88
49	MO387800021/2 Available to backorder	Rear Axle-Yellow	£429.35 £357.79
50	MO137510305/1 Available to backorder	Pin	£5.35 £4.46
51	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
52	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
53	MO137510306/0 Available to backorder	Pin	£9.43 £7.86
54	MO137430104/0 Available to backorder	Spring	£4.08 £3.40
55	MO337394207/0 Available to backorder	Knob	£5.92 £4.93
57	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
58	MO112727807/0 In stock	Screw	£1.55 £1.29
59	MO337110339/1 In stock	Cover	£4.37 £3.64
61	MO337060026/0 Available to backorder	Belt Cover	£6.47 £5.39
62	MO112523040/0 In stock	Washer	£1.49 £1.24
63	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
64	MO337060027/0 Available to backorder	Side Cover [Park 120-220]	£7.31 £6.09
