COMBI 753e V Kit - 2023-2025 - 2L0537978/UKS - Stiga Rotary Mower Deck Diagram

Name: COMBI 753e V Kit - 2023-2025 - 2L0537978/UKS - Stiga Rotary Mower Deck Diagram
SKU: combi_753e_v_kit_2l0537978_uks_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_753e_v_kit_2l0537978_uks_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 753e V Kit - 2023-2025 - 2L0537978/UKS - Stiga Rotary Mower Deck Diagram

Description

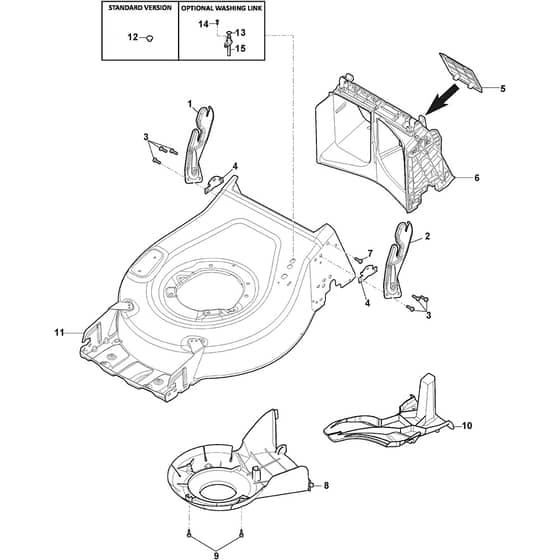

Stiga COMBI 753e V Kit Parts Diagram

Product Name - COMBI 753e V Kit

Model Year - 2023-2025

Model Type - CP1 530 ASQ LI D48

Art.N - 2L0537978/UKS

Engine Model -

	Part No.	Details
1	MO381005271/0 Available to backorder	Bracket-Rh	£12.67 £10.56
2	MO381005273/0 Available to backorder	Left Bracket	£12.67 £10.56
3	MO112727807/0 In stock	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
5	MO322600310/0 In stock	Rear Door Only for Electric Start Engine with ION battery	£5.06 £4.22
6	MO322108329/0 In stock	Rear Conveyor	£20.11 £16.76
7	MO112728697/0 In stock	Screw	£1.55 £1.29
8	MO322060250/1 In stock	Belt Protection As Optional	£10.85 £9.04
9	MO112728903/0 In stock	Screw As Optional	£1.39 £1.16
10	MO322140251/1 In stock	Mulching Deflector As Optional	£13.50 £11.25
11	MO381005633/0 Available to backorder	Grey Deck Side Discharge	£198.00 £165.00
12	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring NOT for battery models	£5.06 £4.22
14	MO112728450/0 In stock	Screw NOT for battery models	£1.55 £1.29
15	MO322034002/0 In stock	Washing Connection	£1.70 £1.42
