COMBI 753 V - 2022-2025 - 2L0537838/ST2 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

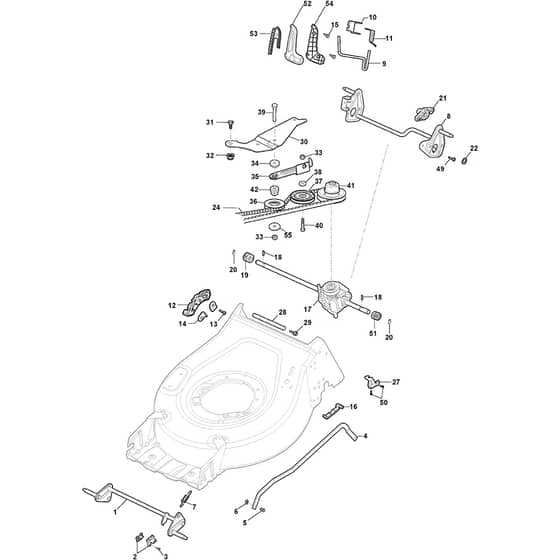

Stiga COMBI 753 V Parts Diagram

Product Name - COMBI 753 V

Model Year - 2022-2025

Model Type - CP1 534 SVQ

Art.N - 2L0537838/ST2

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	MO381302947/0 Available to backorder	Axle. Front Wheels	£29.57 £24.64
2	MO322785305/1 In stock	Support	£2.69 £2.24
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869735/0 Available to backorder	Rod. Height Adjustment	£15.62 £13.02
5	MO122519823/0 In stock	Pin	£2.24 £1.87
6	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
7	MO122450494/0 In stock	Spring	£4.78 £3.98
8	MO381302849/1 Available to backorder	Rear Wheel Axle	£50.69 £42.24
9	MO322321555/3 Available to backorder	Lever. Height Adjustment	£3.38 £2.82
10	MO322557181/0 Available to backorder	Plate	£2.11 £1.76
11	MO122446198/1 Available to backorder	Spring	£1.70 £1.42
12	MO322735608/0 Available to backorder	Sector. Height Adjustment	£2.22 £1.85
13	MO112727807/0 In stock	Screw	£1.55 £1.29
14	MO322545232/2 Available to backorder	Plate	£1.55 £1.29
15	MO112728696/0 Available to backorder	Screw	£1.63 £1.36
16	MO322785500/0 In stock	Support	£1.84 £1.53
17	MO181003116/0 Available to backorder	Gear Box	£183.01 £152.51
18	MO122753000/0 In stock	Pin	£1.55 £1.29
19	MO122570133/0 In stock	Right Pinion	£7.52 £6.27
20	MO112608600/0 In stock	Seeger	£1.55 £1.29
21	MO322042067/0 In stock	Bushing	£4.24 £3.53
22	MO112521371/0 Available to backorder	Washer	£1.63 £1.36
24	MO135064378/0 In stock	Belt	£12.13 £10.11
27	MO322778477/1 Available to backorder	Bracket	£4.24 £3.53
28	MO322608565/0 Available to backorder	Reinforcement Rod	£7.46 £6.22
29	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
30	MO322806625/2 Available to backorder	Support	£5.47 £4.56
31	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
32	MO112292102/0 In stock	Nut	£1.70 £1.42
33	MO112154510/0 In stock	Nut	£1.55 £1.29
34	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
35	MO322806623/0 Available to backorder	Pulley Support	£4.24 £3.53
36	MO325601570/1 In stock	Pulley	£24.37 £20.31
37	MO122601914/0 In stock	Pulley	£21.54 £17.95
38	MO122671653/0 Available to backorder	Washer	£1.63 £1.36
39	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
40	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
41	MO122601932/0 Available to backorder	Pulley Already assembled on pos.17	£57.42 £47.85
42	MO122167708/0 Available to backorder	Spacer	£6.77 £5.64
50	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
51	MO122570134/0 In stock	Left Pinion	£7.52 £6.27
52	MO322394550/0 In stock	Upper Handgrip Black	£2.68 £2.23
53	MO322394551/0 In stock	Handgrip	£1.97 £1.64
54	MO322394559/0 Available to backorder	Handle. Lower Part Black	£2.12 £1.77
55	MO112523050/0 In stock	Washer M6 6.6 X 24 X 2	£1.57 £1.31
