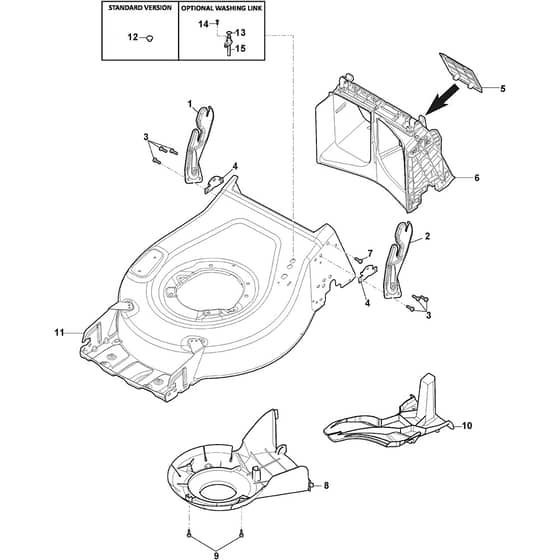

COMBI 753 S - 2022-2025 - 2L0536848/ST2 - Stiga Rotary Mower Deck Diagram

Name: COMBI 753 S - 2022-2025 - 2L0536848/ST2 - Stiga Rotary Mower Deck Diagram
SKU: combi_753_s_2l0536848_st2_deck-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 753 S - 2022-2025 - 2L0536848/ST2 - Stiga Rotary Mower Deck Diagram

Description

Stiga COMBI 753 S Parts Diagram

Product Name - COMBI 753 S

Model Year - 2022-2025

Model Type - CP1 534 SQ

Art.N - 2L0536848/ST2

Engine Model - ST 170 OHV Autochoke Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005271/0 Available to backorder	Bracket-Rh	£12.67 £10.56
2	MO381005273/0 Available to backorder	Left Bracket	£12.67 £10.56
3	MO112727807/0 In stock	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
5	MO322600310/0 Available to backorder	Rear Door Only for Electric Start Engine with ION battery	£5.06 £4.22
6	MO322108329/0 Available to backorder	Rear Conveyor	£19.38 £16.15
7	MO112728697/0 In stock	Screw	£1.55 £1.29
8	MO322060250/1 In stock	Belt Protection As Optional	£10.84 £9.03
9	MO112728903/0 In stock	Screw As Optional	£1.40 £1.17
10	MO322140251/1 Available to backorder	Mulching Deflector As Optional	£13.01 £10.84
11	MO381005633/0 Available to backorder	Grey Deck Side Discharge	£198.00 £165.00
12	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring NOT for battery models	£5.06 £4.22
14	MO112728450/0 In stock	Screw NOT for battery models	£1.55 £1.29
15	MO322034002/0 Available to backorder	Washing Connection NOT for battery models	£1.69 £1.41
