COMBI 748e V Kit - 2023-2025 - 2L0487978/ST1 - Stiga Rotary Mower Handle Diagram

Description

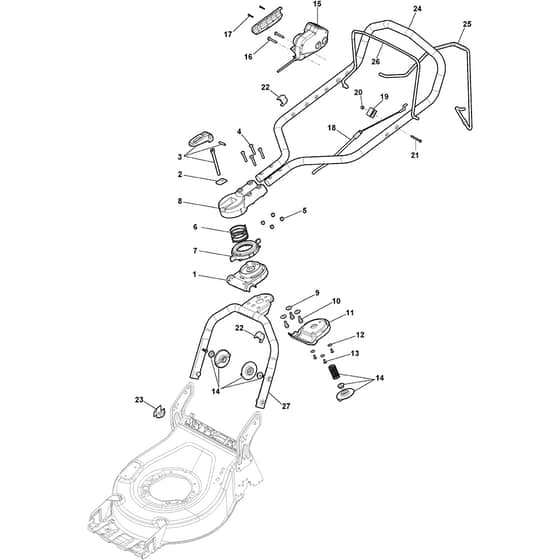

Stiga COMBI 748e V Kit Parts Diagram

Product Name - COMBI 748e V Kit

Model Year - 2023-2025

Model Type - CP1 480 ASQ LI D48

Art.N - 2L0487978/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005275/0 In stock	Lower Handle Upper Cover	£21.83 £18.19
2	MO322981479/0 Available to backorder	Block Plate Fulcrum Handle	£1.69 £1.41
3	MO381103382/1 Available to backorder	Handle Fulcrum Lever Assy	£17.78 £14.82
4	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
6	MO122450498/0 Available to backorder	Handle Fulcrum Spring	£3.79 £3.16
7	MO322245070/0 Available to backorder	Handle Fulcrum Flange	£17.78 £14.82
8	MO381005277/0 In stock	Upper Handle Fulcrum	£22.46 £18.72
9	MO112523040/0 In stock	Washer	£1.49 £1.24
10	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
11	MO322570217/0 Available to backorder	Lower Handle Lower Cover	£2.47 £2.06
12	MO112523000/1 Available to backorder	Washer	£1.55 £1.29
13	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
14	MO381108620/0 Available to backorder	Knobs Assy	£3.19 £2.66
15	MO381600621/0 Available to backorder	Safety Switch Assy	£73.74 £61.45
16	MO112727799/0 Available to backorder	Screw	£1.82 £1.52
17	MO112728706/0 In stock	Screw	£1.55 £1.29
18	MO381030158/0 In stock	Clutch Cable Only for Self Propelled 500series	£19.50 £16.25
19	MO322551684/0 Available to backorder	Cable Holder Ø25 Only for Self Propelled 500series	£8.87 £7.39
20	MO112154510/0 In stock	Nut Only for Self Propelled 500series	£1.55 £1.29
21	MO112727783/0 Available to backorder	Screw Only for Self Propelled 500series	£1.69 £1.41
22	MO118390020/0 Available to backorder	Conduit Clip	£1.82 £1.52
23	MO133320504/0 Available to backorder	Fairlead	£1.97 £1.64
24	MO381007690/0 Available to backorder	Upper Handle. Yellow	£86.04 £71.70
25	MO181103523/0 Available to backorder	Traction Lever. Black	£18.66 £15.55
26	MO181103522/1 Available to backorder	Opc Lever	£21.40 £17.83
27	MO381007700/0 Available to backorder	Ass.Lower Handle Cp1 Stiga Yellow	£53.35 £44.46
