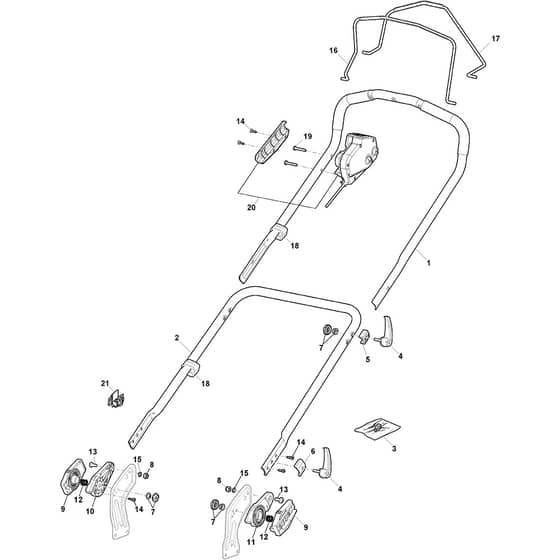

COMBI 748 SQ AE - 2021 - 2L0487878/ST1 - Stiga Rotary Mower Handle Diagram

Description

Stiga COMBI 748 SQ AE Parts Diagram

Product Name - COMBI 748 SQ AE

Model Year - 2021

Model Type - CP1 480 ASQ LI D48

Art.N - 2L0487878/ST1

Engine Model -

	Part No.	Details
1	MO381008735/0 In stock	Outfit. Plastic Pin	£2.24 £1.87
4	MO381103360/0 In stock	Locking Handle Lever	£5.47 £4.56
5	MO322680017/0 Available to backorder	Washer	£1.97 £1.64
6	MO322981477/0 Available to backorder	Fixing Plate	£3.10 £2.58
7	MO381004310/0 In stock	Nut-Knob Assy	£1.97 £1.64
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO322785499/1 Available to backorder	Fix Teethed Support	£4.08 £3.40
10	MO322785505/0 Available to backorder	Handle Support. Right	£4.93 £4.11
11	MO322785506/0 Available to backorder	Handle Support. Left	£4.24 £3.53
12	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
13	MO112793102/0 In stock	Screw	£1.55 £1.29
14	MO112728689/0 In stock	Screw	£1.39 £1.16
15	MO112521350/0 In stock	Washer	£1.55 £1.29
16	MO181103522/1 Available to backorder	Opc Lever From 13-2-2024	£21.41 £17.84
17	MO181103523/1 Available to backorder	Traction Lever. Black Only for Electric Traction Models From 13-2-2024	£20.69 £17.24
17	MO181103523/0 Available to backorder	Traction Lever. Black Only for Electric Traction Models To 12-2-2024	£20.69 £17.24
18	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
19	MO112727799/0 Available to backorder	Screw	£1.84 £1.53
20	MO381600602/0 Available to backorder	Dead Hand Switch - Battery	£68.42 £57.02
21	MO133320504/0 Available to backorder	Fairlead	£1.97 £1.64
