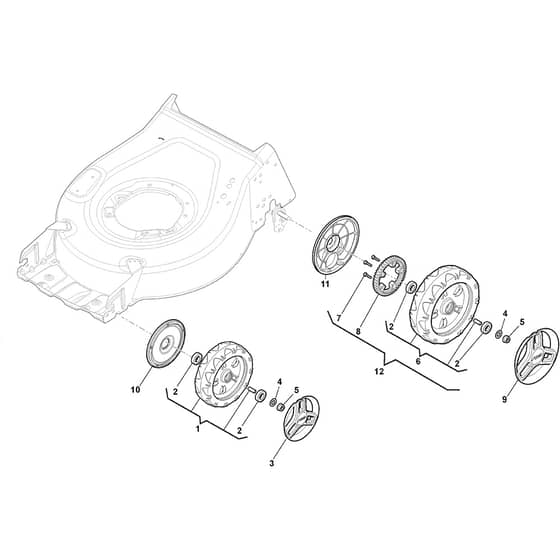

COMBI 748 SE - 2022-2025 - 2L0486548/ST2 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: COMBI 748 SE - 2022-2025 - 2L0486548/ST2 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: combi_748_se_2l0486548_st2_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 748 SE - 2022-2025 - 2L0486548/ST2 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga COMBI 748 SE Parts Diagram

Product Name - COMBI 748 SE

Model Year - 2022-2025

Model Type - CP1 484 WSQ

Art.N - 2L0486548/ST2

Engine Model - ST 140 LS OHV Autochoke Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007416/3 In stock	Wheel Ø 200 Only bearings NOT bushings From S.N 19JA2WBH009253	£16.93 £14.11
2	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
3	MO322110744/0 Available to backorder	Hub Cap Grey	£3.52 £2.93
4	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO112728706/0 In stock	Screw	£1.55 £1.29
9	MO322110746/0 Available to backorder	Hub Cap Grey	£4.50 £3.75
10	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.69 £1.41
11	MO322600240/0 Available to backorder	Protection. Wheel Only for Self Propelled Models	£5.35 £4.46
12	MO381007472/2 Available to backorder	Wheel Only bearings NOT bushings	£37.94 £31.62
