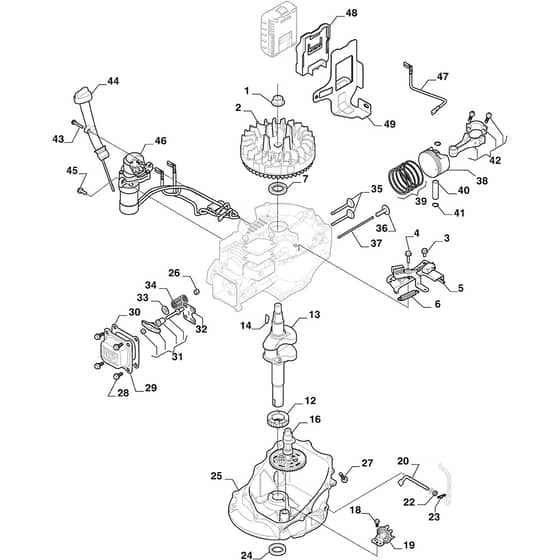

COMBI 553 SE - 2023-2024 - 2L0536648/ST1 - Stiga Rotary Mower Piston Crankshaft Diagram

Description

Stiga COMBI 553 SE Parts Diagram

Product Name - COMBI 553 SE

Model Year - 2023-2024

Model Type - CP1 534 SE

Art.N - 2L0536648/ST1

Engine Model - ST 170 LS OHV Autochoke Powered by STIGA

	Part No.	Details
1	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
2	MO118551470/0 Available to backorder	Flywheel Ass.Y	£76.75 £63.96
5	MO118551521/0 Available to backorder	Flywheel Brake.Stop Switch Assy	£38.00 £31.67
6	MO118551522/0 Available to backorder	Spring	£2.40 £2.00
7	MO118550300/0 Available to backorder	Oil Seal	£7.25 £6.04
12	MO118552533/0 Available to backorder	Bevel Gear	£12.43 £10.36
13	MO118552583/0 Available to backorder	Crankshaft	£108.37 £90.31
14	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
16	MO118551448/0 Available to backorder	Camshaft Assy	£36.59 £30.49
18	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
19	MO118551460/0 Available to backorder	Speed Governor Assy	£16.43 £13.69
20	MO118552541/0 Available to backorder	Shaft. Governor Arm	£3.14 £2.62
24	MO118552654/0 Available to backorder	Oil Seal	£2.87 £2.39
25	MO118552569/0 Available to backorder	Crankcase	£93.12 £77.60
26	MO118551117/0 Available to backorder	Seal	£7.87 £6.56
27	MO118551535/0 In stock	Bolt	£2.24 £1.87
29	MO118552577/0 Available to backorder	Cover Comp. Head	£5.74 £4.78
30	MO118550892/0 Available to backorder	Packing Head Cover	£3.24 £2.70
31	MO118550893/0 Available to backorder	Valve Arm Set	£13.15 £10.96
35	MO118550910/0 Available to backorder	Valve Assy. Intake + Exhaust	£21.54 £17.95
36	MO118551449/0 Available to backorder	Valve Lifter	£9.65 £8.04
38	MO118552551/0 Available to backorder	Piston	£31.42 £26.18
39	MO118552553/0 Available to backorder	Piston. Ring Set	£26.22 £21.85
40	MO118550915/0 Available to backorder	Piston Pin	£5.34 £4.45
41	MO118550914/0 Available to backorder	Washer. Piston Pin	£1.55 £1.29
42	MO118551446/0 Available to backorder	Connecting Rod Assy	£38.00 £31.67
44	MO118551444/0 In stock	Oil Filler Assy	£12.67 £10.56
45	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
46	MO118552511/0 Available to backorder	Start Motor Assy	£127.94 £106.62
47	MO118552510/0 Available to backorder	Switch Wires	£4.24 £3.53
48	MO118551477/1 Available to backorder	Battery Holder	£20.50 £17.08
49	MO118552522/0 Available to backorder	Support	£27.04 £22.53
