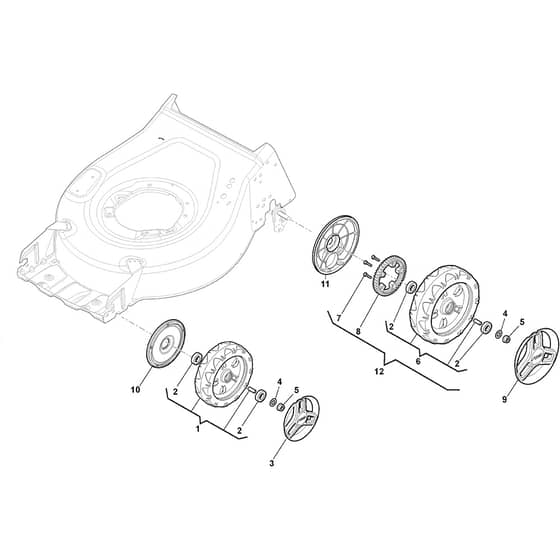

COMBI 553 S - 2023-2025 - 2L0536048/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: COMBI 553 S - 2023-2025 - 2L0536048/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: combi_553_s_2l0536048_st1_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_553_s_2l0536048_st1_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 553 S - 2023-2025 - 2L0536048/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga COMBI 553 S Parts Diagram

Product Name - COMBI 553 S

Model Year - 2023-2025

Model Type - CP1 534 S

Art.N - 2L0536048/ST1

Engine Model - ST 170 OHV Autochoke Powered by STIGA

	Part No.	Details
1	MO381007416/3 Available to backorder	Wheel Ø 200 Only bearings NOT bushings From S.N 19JA2WBH009253	£17.60 £14.67
2	MO119216035/0 In stock	Bearing	£3.52 £2.93
3	MO322110744/0 Available to backorder	Hub Cap Grey	£3.52 £2.93
4	MO112521350/0 In stock	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO112728706/0 In stock	Screw	£1.60 £1.33
9	MO322110746/0 Available to backorder	Hub Cap Grey	£4.50 £3.75
10	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.70 £1.42
11	MO322600240/0 Available to backorder	Protection. Wheel Only for Self Propelled Models	£5.34 £4.45
12	MO381007472/2 In stock	Wheel Only bearings NOT bushings	£37.94 £31.62
