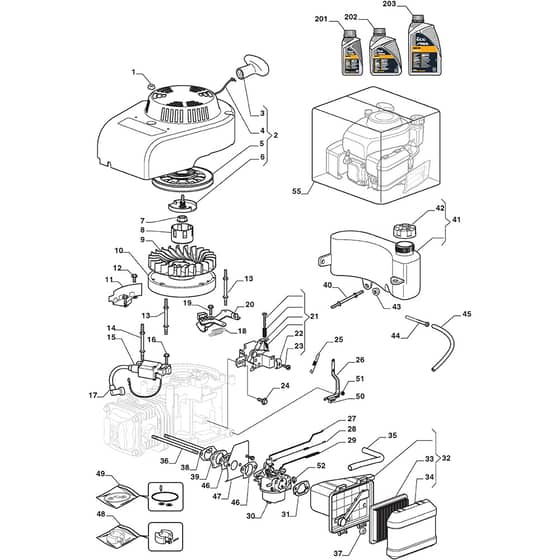

COMBI 55 SQ - 2017-2019 - 294556848/S17 - Stiga Rotary Mower Carburettor Tank Diagram

Name: COMBI 55 SQ - 2017-2019 - 294556848/S17 - Stiga Rotary Mower Carburettor Tank Diagram
SKU: combi_55_sq_294556848_s17_carburettor_tank-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 55 SQ - 2017-2019 - 294556848/S17 - Stiga Rotary Mower Carburettor Tank Diagram

Description

Stiga COMBI 55 SQ Parts Diagram

Product Name - COMBI 55 SQ

Model Year - 2017-2019

Model Type - MP1 554 WSQ

Art.N - 294556848/S17

Engine Model - ST 55 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112292102/0 In stock	Nut	£1.69 £1.41
2	MO118550276/1 In stock	Starter Assy	£52.08 £43.40
3	MO118550274/0 Available to backorder	Starter Handle	£15.48 £12.90
4	MO118550779/0 Available to backorder	Starting Rope	£7.19 £5.99
5	MO118550778/0 Available to backorder	Starter Pulley	£26.88 £22.40
6	MO118550275/1 In stock	Starter Pawl Set	£12.25 £10.21
7	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
8	MO118550335/0 Available to backorder	Starter Cup	£22.52 £18.77
9	MO118550254/0 Available to backorder	Flywheel Fan	£19.99 £16.66
10	MO118550253/0 Available to backorder	Flywheel Ass.Y	£91.58 £76.32
11	MO118550774/0 Available to backorder	Guard	£7.20 £6.00
12	MO112791213/1 In stock	Screw	£1.55 £1.29
14	MO118550301/0 Available to backorder	Stud Bolt	£6.62 £5.52
203	MO1111-9238-01 In stock	Engine Oil. 10W-30 - 1.4 L	£13.56 £11.30
