COMBI 53 SQ MAE - 2019-2021 - 295536868/ST1 - Stiga Rotary Mower Height Adjusting Diagram

Name: COMBI 53 SQ MAE - 2019-2021 - 295536868/ST1 - Stiga Rotary Mower Height Adjusting Diagram
SKU: combi_53_sq_mae_295536868_st1_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 53 SQ MAE - 2019-2021 - 295536868/ST1 - Stiga Rotary Mower Height Adjusting Diagram

Description

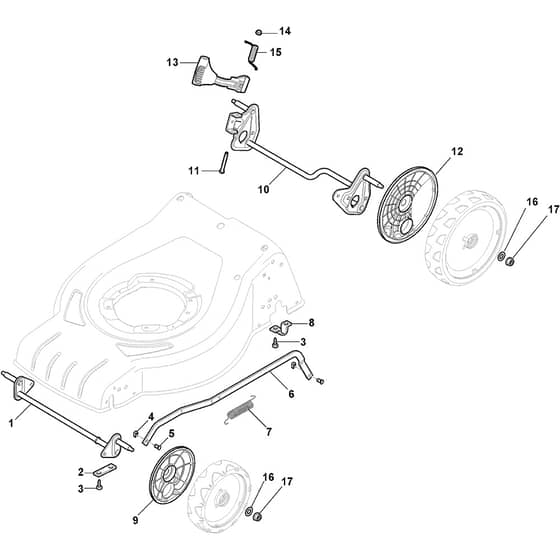

Stiga COMBI 53 SQ MAE Parts Diagram

Product Name - COMBI 53 SQ MAE

Model Year - 2019-2021

Model Type - CRC 530 WSVQ LI 60

Art.N - 295536868/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302853/1 In stock	Front Wheel Axle From S.N 20BA2WBH074119	£32.38 £26.98
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
3	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
4	MO112436050/0 In stock	Plate	£1.82 £1.52
5	MO122519820/0 Available to backorder	Pin	£2.12 £1.77
6	MO322869679/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH070882	£22.46 £18.72
6	MO322869679/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH074119	£25.34 £21.12
7	MO122446193/0 Available to backorder	Spring	£4.61 £3.84
8	MO322545152/0 In stock	Plate	£1.55 £1.29
9	MO322600145/0 Available to backorder	Protection. Wheel	£1.69 £1.41
10	MO381302849/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH051136	£50.68 £42.23
11	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
12	MO322600240/0 Available to backorder	Protection. Wheel	£5.35 £4.46
13	MO381003458/1 Available to backorder	Wheels Rear Adj. Lever with Standard Black Knob From S.N 20BA2WBH073719	£10.84 £9.03
13	MO381003459/1 Available to backorder	Wheels Rear Adj. Lever with STIGA Logo Black Knob From S.N 20BA2WBH073719	£13.44 £11.20
13	MO381003459/0 Available to backorder	Wheels Rear Adj. Lever Knob with STIGA Logo To S.N 20BA2WBH073718	£13.37 £11.14
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
16	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
17	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
