COMBI 53 SQ H - 2018-2019 - 295536838/STX - Stiga Rotary Mower Grass Catcher Diagram

Name: COMBI 53 SQ H - 2018-2019 - 295536838/STX - Stiga Rotary Mower Grass Catcher Diagram
SKU: combi_53_sq_h_295536838_stx_grass_catcher-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_53_sq_h_295536838_stx_grass_catcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

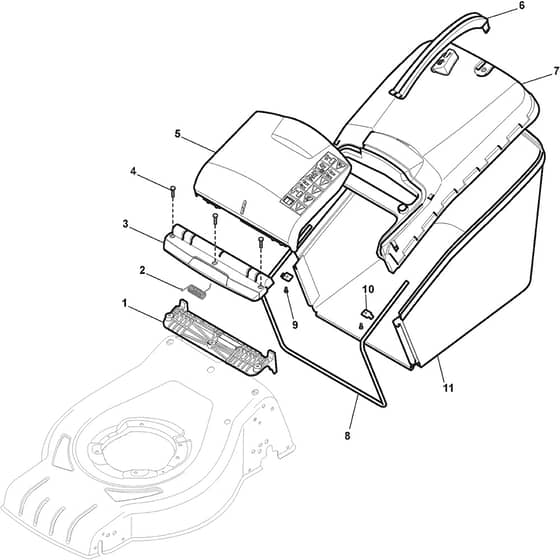

COMBI 53 SQ H - 2018-2019 - 295536838/STX - Stiga Rotary Mower Grass Catcher Diagram

Description

Stiga COMBI 53 SQ H Parts Diagram

Product Name - COMBI 53 SQ H

Model Year - 2018-2019

Model Type - CRC 534 WSQ

Art.N - 295536838/STX

Engine Model - GCV 160 OHC Autochoke

	Part No.	Details
1	MO322785331/0 Available to backorder	Black Stone Guard Support	£6.64 £5.53
2	MO122450464/0 Available to backorder	Spring	£2.24 £1.87
3	MO322109557/0 Available to backorder	Stone Guard Supp. Cover Grey Grey NCS S8000-N	£24.78 £20.65
3	MO381008164/0 Available to backorder	Stone Guard Supp. Cover Yellow Yellow	£26.59 £22.16
4	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
5	MO322600214/1 Available to backorder	Stone Guard. Yellow Yellow	£26.59 £22.16
5	MO322600216/1 Available to backorder	Stone Guard. Grey Grey	£13.66 £11.38
6	MO322393646/0 Available to backorder	Handle. Yellow Yellow To 31-8-2013	£5.22 £4.35
6	MO322393715/0 Available to backorder	Grasscatcher Handle. Grey Grey NCS S8000-N From 01-9-2013	£5.92 £4.93
7	MO381486029/0 Available to backorder	Grass-Box. Upper Part Yellow Yellow	£29.57 £24.64
8	MO122608561/1 Available to backorder	Lower Stiffening	£11.54 £9.62
9	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
10	MO322545159/0 Available to backorder	Plate	£1.63 £1.36
11	MO181102331/0 Available to backorder	Grassbag [Black C.W Stiga Logo]	£43.63 £36.36
