COMBI 53 SQ H - 2018-2019 - 295536838/STX - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

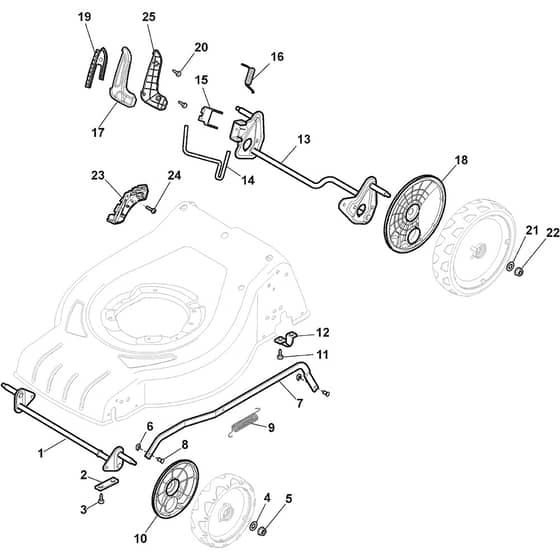

Stiga COMBI 53 SQ H Parts Diagram

Product Name - COMBI 53 SQ H

Model Year - 2018-2019

Model Type - CRC 534 WSQ

Art.N - 295536838/STX

Engine Model - GCV 160 OHC Autochoke

	Part No.	Details
1	MO381302853/1 In stock	Front Wheel Axle From S.N 20BA2WBH074119	£32.38 £26.98
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO322869679/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH074119	£25.36 £21.13
7	MO322869679/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH070882	£25.36 £21.13
8	MO122519823/0 In stock	Pin	£2.24 £1.87
9	MO122446193/0 In stock	Spring	£4.78 £3.98
10	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.70 £1.42
11	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
12	MO322545152/0 In stock	Plate	£1.55 £1.29
13	MO381302849/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH051136	£50.69 £42.24
14	MO322321555/3 Available to backorder	Lever. Height Adjustment From S.N 19DA2WBH009066	£3.38 £2.82
15	MO322557181/0 Available to backorder	Plate	£2.11 £1.76
16	MO122446198/1 Available to backorder	Spring From S.N SK8164185	£1.70 £1.42
17	MO322394550/0 In stock	Upper Handgrip Black	£2.68 £2.23
17	MO322394552/0 In stock	Upper Handgrip Grey NCS S8000-N	£2.68 £2.23
18	MO322600240/0 Available to backorder	Protection. Wheel	£5.34 £4.45
19	MO322394551/0 In stock	Handgrip Black	£1.97 £1.64
20	MO112728696/0 Available to backorder	Screw	£1.63 £1.36
21	MO112521350/0 In stock	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Nut	£1.55 £1.29
23	MO322735607/0 Available to backorder	Sector. Height Adjustment	£3.52 £2.93
24	MO112728697/0 In stock	Screw	£1.55 £1.29
25	MO322394559/0 Available to backorder	Lower H.Adj Knob Use 322394559.0	£2.12 £1.77
