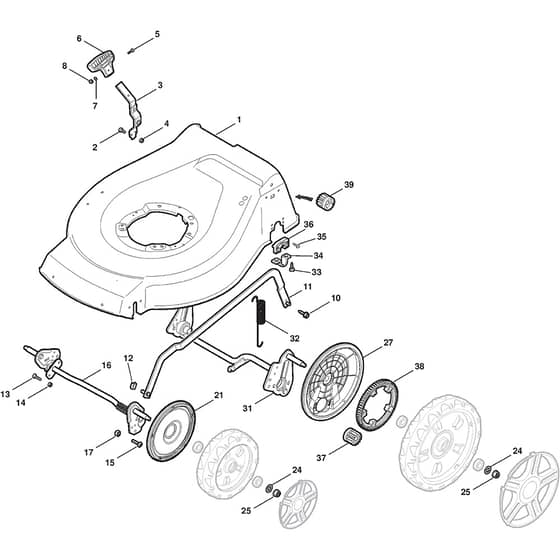

COMBI 53 SQ BW H - 2010-2011 - 299536834/S10 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Name: COMBI 53 SQ BW H - 2010-2011 - 299536834/S10 - Stiga Rotary Mower Deck and Height Adjusting Diagram
SKU: combi_53_sq_bw_h_299536834_s10_deck_and_height_adjusting-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 53 SQ BW H - 2010-2011 - 299536834/S10 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga COMBI 53 SQ BW H Parts Diagram

Product Name - COMBI 53 SQ BW H

Model Year - 2010-2011

Model Type - NTL 534 W TRQ

Art.N - 299536834/S10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
4	MO112154330/0 In stock	Nut	£1.55 £1.29
5	MO112788512/0 Available to backorder	Screw	£1.55 £1.29
6	MO322394503/0 Available to backorder	Knob	£1.82 £1.52
7	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
8	MO112150000/0 Available to backorder	Nut	£1.40 £1.17
10	MO122943013/0 Available to backorder	Screw	£4.78 £3.98
11	MO381002038/0 Available to backorder	Rod. Height Adjustment	£38.00 £31.67
12	MO112436050/0 In stock	Plate	£1.82 £1.52
13	MO112727803/0 Available to backorder	Screw	£1.55 £1.29
15	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
16	MO381302923/0 Available to backorder	Front Wheel Axle	£39.42 £32.85
17	MO112154510/0 In stock	Nut	£1.55 £1.29
21	MO322600145/0 Available to backorder	Protection. Wheel	£1.69 £1.41
24	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
25	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO322600194/0 Available to backorder	Protection. Wheel	£4.78 £3.98
31	MO381002895/1 Available to backorder	Rear Wheel Axle	£66.16 £55.13
32	MO122450460/0 Available to backorder	Spring	£4.66 £3.88
34	MO322545152/0 In stock	Plate	£1.55 £1.29
35	MO112728697/0 In stock	Screw	£1.55 £1.29
36	MO322785304/1 Available to backorder	Support	£2.26 £1.88
37	MO122570134/0 In stock	Left Pinion	£7.52 £6.27
38	MO381007472/2 Available to backorder	Wheels Crown	£37.94 £31.62
39	MO122570133/0 In stock	Right Pinion Z12 Gear	£7.52 £6.27
