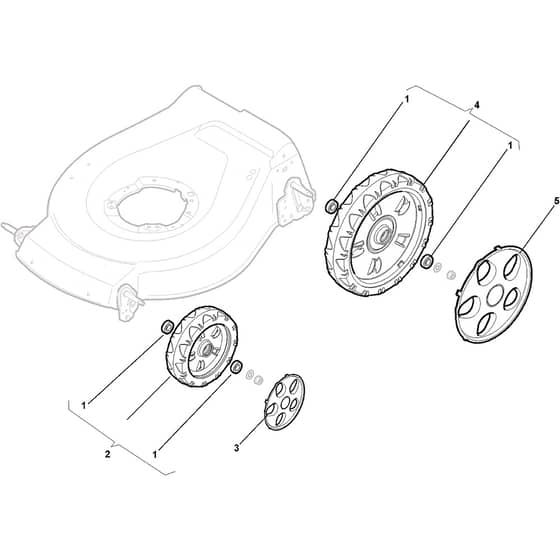

COMBI 53 SQ BW B - 2010-2012 - 299536824/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga COMBI 53 SQ BW B Parts Diagram

Product Name - COMBI 53 SQ BW B

Model Year - 2010-2012

Model Type - NTL 534 W TRQ

Art.N - 299536824/S10

Engine Model - 625 series XVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
2	MO381007416/3 In stock	Wheel Ø 200 From S.N SK5169580 To S.N 19JA2WBH009252	£16.93 £14.11
3	MO322110636/0 Available to backorder	Hub Cap Grey Grey	£2.53 £2.11
4	MO381007472/2 Available to backorder	Wheel Ø 280 From S.N SK5174228 To S.N 19KA2WBH006301	£37.94 £31.62
5	MO322110650/0 Available to backorder	Hub Cap Yellow Yellow	£3.94 £3.28
5	MO322110644/0 Available to backorder	Hub Cap D.300 Use Repla0000077 Kit	£3.25 £2.71
7	MO112728706/0 In stock	Self-Tapping Screw Wn1451 K40 X 16	£1.55 £1.29
