COMBI 53 S BW SILENT - 2010 - 201577044/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: COMBI 53 S BW SILENT - 2010 - 201577044/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: combi_53_s_bw_silent_201577044_s10_wheels_and_hub_caps-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_53_s_bw_silent_201577044_s10_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 53 S BW SILENT - 2010 - 201577044/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

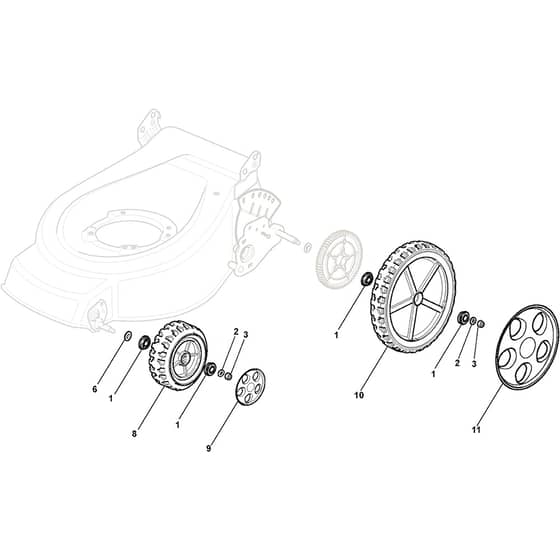

Stiga COMBI 53 S BW SILENT Parts Diagram

Product Name - COMBI 53 S BW SILENT

Model Year - 2010

Model Type - CAL 534 W TR SIL

Art.N - 201577044/S10

Engine Model -

	Part No.	Details
1	MO122122206/0 In stock	Bearing	£1.84 £1.53
2	MO112521350/0 In stock	Washer	£1.55 £1.29
3	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112530150/0 In stock	Spring Washer	£1.39 £1.16
8	MO381007390/2 Available to backorder	Wheel Ø 210 To 31-8-2013	£18.43 £15.36
8	MO381007490/0 Available to backorder	Wheel Ø 210 From 01-9-2013	£25.00 £20.83
9	MO322110636/0 In stock	Hub Cap Grey Grey	£2.53 £2.11
11	MO322110644/0 Available to backorder	Hub Cap D.300 Use Repla0000077 Kit	£3.38 £2.82
