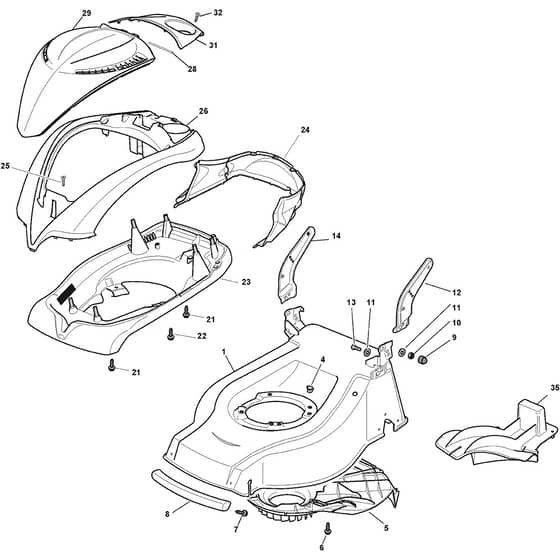

COMBI 53 S BW SILENT - 2010 - 201577044/S10 - Stiga Rotary Mower Chassis Diagram

Name: COMBI 53 S BW SILENT - 2010 - 201577044/S10 - Stiga Rotary Mower Chassis Diagram
SKU: combi_53_s_bw_silent_201577044_s10_chassis-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_53_s_bw_silent_201577044_s10_chassis-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 53 S BW SILENT - 2010 - 201577044/S10 - Stiga Rotary Mower Chassis Diagram

Description

Stiga COMBI 53 S BW SILENT Parts Diagram

Product Name - COMBI 53 S BW SILENT

Model Year - 2010

Model Type - CAL 534 W TR SIL

Art.N - 201577044/S10

Engine Model -

	Part No.	Details
4	MO322291150/0 Available to backorder	Rubber Insert	£1.55 £1.29
5	MO322060224/0 Available to backorder	Belt Protection To 31-8-2009	£25.49 £21.24
6	MO112728460/0 Available to backorder	Screw	£1.55 £1.29
7	MO112735404/0 Available to backorder	Screw	£1.55 £1.29
9	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
10	MO112155000/0 In stock	Nut	£1.55 £1.29
11	MO122671653/0 Available to backorder	Washer	£1.63 £1.36
13	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
21	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
25	MO112728706/0 In stock	Screw	£1.60 £1.33
32	MO112728696/0 Available to backorder	Screw	£1.63 £1.36
