COMBI 53 S B - 2009-2010 - 299275324/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: COMBI 53 S B - 2009-2010 - 299275324/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: combi_53_s_b_299275324_st9_wheels_and_hub_caps-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_53_s_b_299275324_st9_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 53 S B - 2009-2010 - 299275324/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

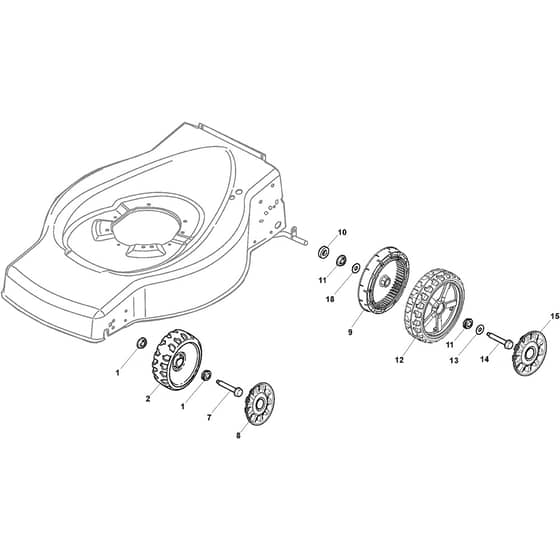

Stiga COMBI 53 S B Parts Diagram

Product Name - COMBI 53 S B

Model Year - 2009-2010

Model Type - ESL 534 TR

Art.N - 299275324/ST9

Engine Model -

	Part No.	Details
2	MO322686091/1 In stock	Wheel To 31-8-2006	£6.77 £5.64
7	MO122524341/0 In stock	Pin From 01-9-2006	£7.50 £6.25
7	MO122524321/0 Available to backorder	Pin To 31-8-2006	£5.06 £4.22
8	MO322110493/0 In stock	Hub Cap Grey Grey	£3.52 £2.93
9	MO322120109/0 Available to backorder	Wheels Crown	£6.62 £5.52
10	MO322170622/0 Available to backorder	Spacer From 01-9-2006	£1.39 £1.16
10	MO112521370/0 Available to backorder	Washer To 31-8-2006	£1.63 £1.36
11	MO122122206/0 In stock	Bearing	£1.84 £1.53
12	MO381007355/0 Available to backorder	Wheel To 31-8-2006	£20.69 £17.24
12	MO381007468/0 In stock	Wheel Ø 190 From 01-9-2016	£15.34 £12.78
13	MO112523050/0 In stock	Washer	£1.57 £1.31
14	MO112735599/0 In stock	Screw	£1.55 £1.29
15	MO322110494/0 Available to backorder	Hub Cap Grey Grey	£3.92 £3.27
18	MO122675100/0 Available to backorder	Washer D.12.6 X 24 X 0.6	£1.92 £1.60
