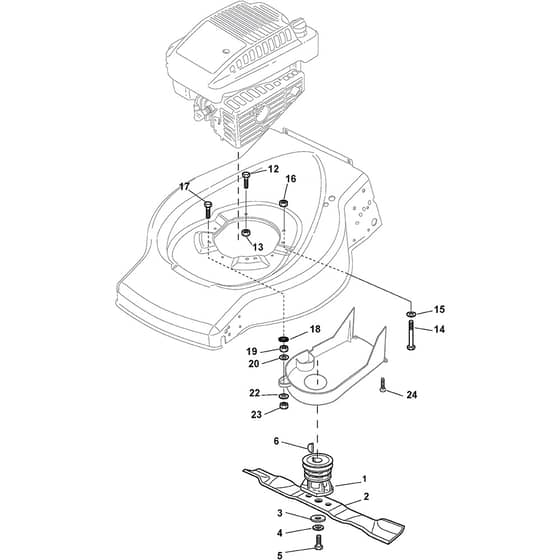

COMBI 53 S B - 2009-2010 - 299275324/ST9 - Stiga Rotary Mower Blade Diagram

Name: COMBI 53 S B - 2009-2010 - 299275324/ST9 - Stiga Rotary Mower Blade Diagram
SKU: combi_53_s_b_299275324_st9_blade-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 53 S B - 2009-2010 - 299275324/ST9 - Stiga Rotary Mower Blade Diagram

Description

Stiga COMBI 53 S B Parts Diagram

Product Name - COMBI 53 S B

Model Year - 2009-2010

Model Type - ESL 534 TR

Art.N - 299275324/ST9

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2010	£9.29 £7.74
2	MO181004381/1 In stock	Blade Standard	£17.10 £14.25
3	MO122160400/0 In stock	Elastic Disc From 01-9-2007	£1.82 £1.52
3	MO112369600/0 Available to backorder	Elastic Disc To 31-8-2007	£17.38 £14.48
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139100/0 In stock	Key	£1.55 £1.29
12	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
13	MO112293201/0 In stock	Nut	£1.69 £1.41
14	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
15	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
17	MO112775000/0 Available to backorder	Screw	£1.97 £1.64
18	MO112540060/0 Available to backorder	Washer	£1.55 £1.29
19	MO112293200/0 In stock	Nut	£1.55 £1.29
20	MO122671653/0 Available to backorder	Washer To 31-8-2006	£1.55 £1.29
22	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
22	MO122671651/0 Available to backorder	Washer To 31-8-2006	£1.97 £1.64
23	MO112155000/0 In stock	Nut	£1.55 £1.29
24	MO112728903/0 In stock	Self-Tap Screw 4.8 X 25 Use 112728531.0	£1.40 £1.17
