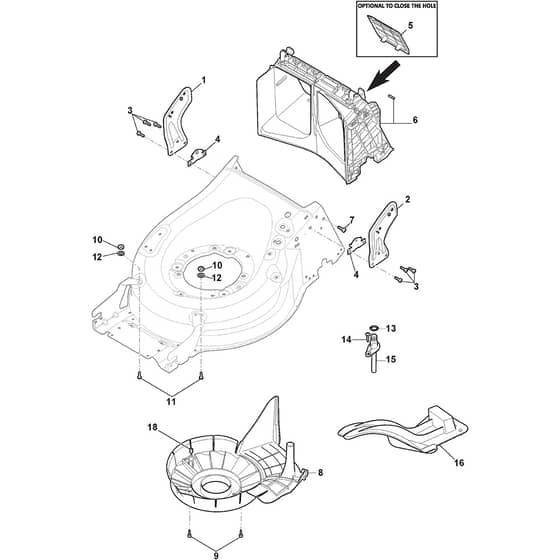

COMBI 50 SVQ - 2019-2020 - 294503828/ST1 - Stiga Rotary Mower Protection Belt Diagram

Name: COMBI 50 SVQ - 2019-2020 - 294503828/ST1 - Stiga Rotary Mower Protection Belt Diagram
SKU: combi_50_svq_294503828_st1_protection_belt-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 50 SVQ - 2019-2020 - 294503828/ST1 - Stiga Rotary Mower Protection Belt Diagram

Description

Stiga COMBI 50 SVQ Parts Diagram

Product Name - COMBI 50 SVQ B

Model Year - 2019-2020

Model Type - MP1 504 SVQ

Art.N - 294503828/ST1

Engine Model - B&S 675 EXi series Ready Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005235/2 Available to backorder	Bracket-Rh Grey From 01-9-2018	£8.45 £7.04
2	MO381005237/0 Available to backorder	Bracket-Lh Grey To 31-8-2017	£7.25 £6.04
2	MO381005237/2 Available to backorder	Bracket-Lh Grey From 01-9-2018	£8.45 £7.04
3	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
5	MO322600310/0 Available to backorder	Rear Door Not for TR.E models	£5.06 £4.22
6	MO381102204/1 Available to backorder	Rear Baffle Assembly From S.N 19JA2WBH017665	£27.11 £22.59
7	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
8	MO322060270/3 Available to backorder	Carter Mulching From S.N 19JA2WBH023209	£11.12 £9.27
9	MO112735645/0 Available to backorder	Screw From 01-9-2016	£1.82 £1.52
9	MO112728903/0 In stock	Screw From 01-9-2015 To 31-8-2016	£1.40 £1.17
10	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO112815206/0 Available to backorder	Screw	£1.55 £1.29
12	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
14	MO112728697/0 In stock	Screw	£1.55 £1.29
15	MO322034002/0 Available to backorder	Washing Connection	£1.69 £1.41
16	MO322140245/0 Available to backorder	Deflector	£12.11 £10.09
18	MO122042073/0 Available to backorder	Belt Guard Bush	£1.69 £1.41
