COMBI 50 SVEQ H - 2020-2022 - 294503538/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

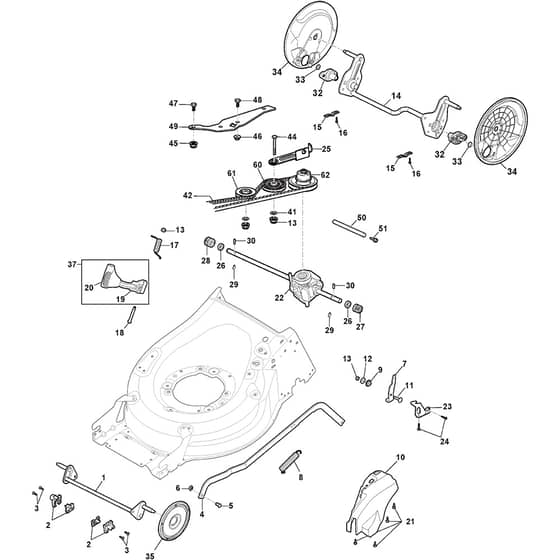

Stiga COMBI 50 SVEQ H Parts Diagram

Product Name - COMBI 50 SVEQ H

Model Year - 2020-2022

Model Type - MP1 504 SVQE

Art.N - 294503538/ST1

Engine Model - GCVxe145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302913/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH080824	£29.56 £24.63
1	MO381302913/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH080823	£30.97 £25.81
2	MO322785305/1 In stock	Support	£2.68 £2.23
4	MO322869695/1 Available to backorder	Wheels Control Rod From S.N 20BA2WBH090897	£33.50 £27.92
5	MO122519820/0 Available to backorder	Pin	£2.12 £1.77
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO322778475/0 Available to backorder	Bracket	£2.81 £2.34
8	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
9	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
10	MO322055329/0 Available to backorder	Cover	£12.95 £10.79
11	MO112815270/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523040/0 In stock	Washer	£1.49 £1.24
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO381302895/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH091143	£29.56 £24.63
14	MO381302895/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH091142	£38.00 £31.67
15	MO322545152/0 In stock	Plate	£1.55 £1.29
16	MO112728697/0 In stock	Screw	£1.55 £1.29
17	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
18	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
19	MO322322915/0 Available to backorder	Wheels Adjusting Lever From S.N 20BA2WBH068105	£4.84 £4.03
19	MO322322855/0 Available to backorder	Wheels Adjusting Lever To S.N 20BA2WBH068104	£5.22 £4.35
20	MO322394527/0 Available to backorder	Knob Black with STIGA Logo	£4.97 £4.14
21	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
22	MO181003125/0 Available to backorder	Gear Box	£225.24 £187.70
23	MO322778477/1 Available to backorder	Bracket From 01-9-2018	£4.22 £3.52
24	MO112728704/1 Available to backorder	Screw	£1.55 £1.29
25	MO322806647/0 Available to backorder	Bracket	£5.06 £4.22
26	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
27	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
28	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
29	MO112608600/0 In stock	Seeger	£1.55 £1.29
30	MO122753000/0 In stock	Pin	£1.55 £1.29
32	MO322042066/0 Available to backorder	Bushing	£1.82 £1.52
33	MO112521371/0 Available to backorder	Washer	£1.55 £1.29
34	MO322600205/1 Available to backorder	Protection. Wheel	£3.79 £3.16
35	MO322600247/0 Available to backorder	Protection. Wheel	£8.18 £6.82
37	MO381003457/0 Available to backorder	Wheels Rear Adj. Lever To S.N 20BA2WBH073718	£13.50 £11.25
41	MO112523050/0 In stock	Washer	£1.55 £1.29
42	MO135064005/0 In stock	Belt	£13.01 £10.84
44	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
45	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
46	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
47	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
48	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
49	MO322806649/0 Available to backorder	Bracket	£6.62 £5.52
50	MO322608567/0 Available to backorder	Stiffening To S.N 19AA2WBH005321	£8.89 £7.41
50	MO322608567/1 Available to backorder	Stiffening From S.N 19AA2WBH005322	£7.74 £6.45
51	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
60	MO122601914/0 In stock	Pulley	£21.54 £17.95
61	MO122601915/0 In stock	Pulley	£21.40 £17.83
62	MO122601932/0 In stock	Variator Pulley	£57.43 £47.86
