COMBI 50 SQ DAE - 2019-2020 - 294507878/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

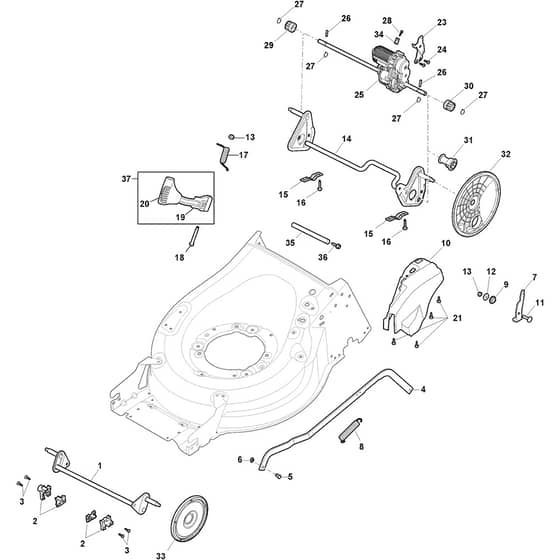

Stiga COMBI 50 SQ DAE Parts Diagram

Product Name - COMBI 50 SQ DAE

Model Year - 2019-2020

Model Type - MP1 500 ASQ LI 48

Art.N - 294507878/ST1

Engine Model -

	Part No.	Details
1	MO381302913/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH080824	£29.57 £24.64
1	MO381302913/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH080823	£30.98 £25.82
2	MO322785305/1 In stock	Support	£2.69 £2.24
4	MO322869695/1 Available to backorder	Wheels Control Rod From S.N 20BA2WBH090897	£33.52 £27.93
5	MO122519820/0 Available to backorder	Pin	£2.22 £1.85
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO322778475/0 Available to backorder	Bracket	£2.82 £2.35
8	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
9	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
10	MO322055329/0 Available to backorder	Cover	£12.94 £10.78
11	MO112815270/0 Available to backorder	Screw	£1.63 £1.36
12	MO112523040/0 In stock	Washer	£1.55 £1.29
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO381302895/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH091142	£38.00 £31.67
14	MO381302895/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH091143	£29.57 £24.64
15	MO322545152/0 In stock	Plate	£1.55 £1.29
17	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
18	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
19	MO322322855/0 Available to backorder	Wheels Adjusting Lever To S.N 20BA2WBH068104	£10.85 £9.04
19	MO322322915/0 Available to backorder	Wheels Adjusting Lever From S.N 20BA2WBH068105	£10.85 £9.04
20	MO322394527/0 Available to backorder	Knob Black with STIGA Logo	£4.78 £3.98
21	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
23	MO322778523/1 Available to backorder	Bracket From 01-9-2018	£7.12 £5.93
24	MO112728697/0 In stock	Screw	£1.55 £1.29
25	MO181003128/0 Available to backorder	Gear Box	£209.20 £174.33
26	MO122753000/0 In stock	Pin	£1.55 £1.29
27	MO112608600/0 In stock	Seeger	£1.55 £1.29
28	MO112728210/0 In stock	Screw	£1.39 £1.16
29	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
30	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
31	MO381001133/0 Available to backorder	Bushing	£13.50 £11.25
32	MO322600205/1 Available to backorder	Protection. Wheel	£3.79 £3.16
33	MO322600247/0 Available to backorder	Protection. Wheel	£4.50 £3.75
34	MO118390022/0 Available to backorder	Conduit Clip	£1.55 £1.29
35	MO322608567/0 Available to backorder	Stiffening To S.N 19AA2WBH005321	£7.74 £6.45
35	MO322608567/1 Available to backorder	Stiffening From S.N 19AA2WBH005322	£7.74 £6.45
36	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
37	MO381003457/0 Available to backorder	Wheels Rear Adj. Lever To S.N 20BA2WBH073718	£13.50 £11.25
