COMBI 50 SQ DAE - 2019-2020 - 294506878/ST1 - Stiga Rotary Mower Handle Diagram

Name: COMBI 50 SQ DAE - 2019-2020 - 294506878/ST1 - Stiga Rotary Mower Handle Diagram
SKU: combi_50_sq_dae_294506878_st1_handle-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_50_sq_dae_294506878_st1_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 50 SQ DAE - 2019-2020 - 294506878/ST1 - Stiga Rotary Mower Handle Diagram

Description

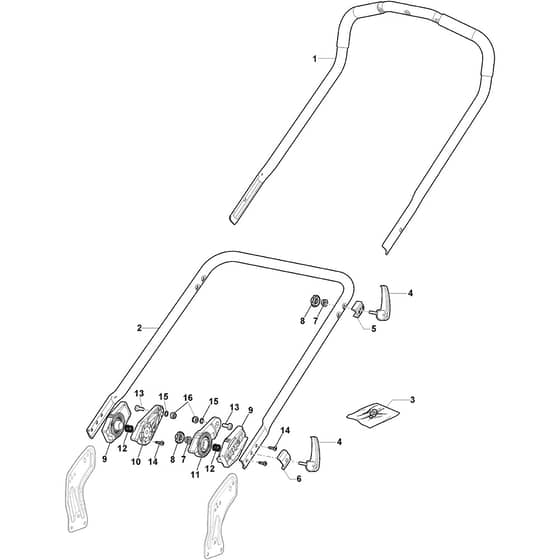

Stiga COMBI 50 SQ DAE Parts Diagram

Product Name - COMBI 50 SQ DAE

Model Year - 2019-2020

Model Type - MP1 500 ASQ LI D48

Art.N - 294506878/ST1

Engine Model -

	Part No.	Details
1	MO381007633/0 Available to backorder	Handle. Upper Part	£59.12 £49.27
2	MO381007622/0 Available to backorder	Handle Lower Part	£27.44 £22.87
3	MO381008735/0 In stock	Outfit. Plastic Pin	£2.24 £1.87
4	MO381103360/0 In stock	Locking Handle Lever	£5.47 £4.56
5	MO322680017/0 Available to backorder	Washer	£1.97 £1.64
6	MO322981477/0 Available to backorder	Fixing Plate	£3.10 £2.58
7	MO122131750/0 In stock	Nut	£1.97 £1.64
8	MO381004310/0 In stock	Black Knob	£1.97 £1.64
9	MO322785499/0 Available to backorder	Fix Teethed Support To 30-11-2018	£4.24 £3.53
9	MO322785499/1 Available to backorder	Fix Teethed Support From 01-12-2018	£4.08 £3.40
10	MO322785497/1 Available to backorder	Right Support From 01-12-2018	£4.78 £3.98
11	MO322785498/1 Available to backorder	Left Support From 01-12-2018	£4.78 £3.98
12	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
13	MO112793102/0 In stock	Screw	£1.55 £1.29
14	MO112728689/0 In stock	Screw	£1.39 £1.16
15	MO112521350/0 In stock	Washer	£1.55 £1.29
16	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
