COMBI 50 SQ - 2019-2022 - 294502848/ST1 - Stiga Rotary Mower Piston Crankshaft Diagram

Description

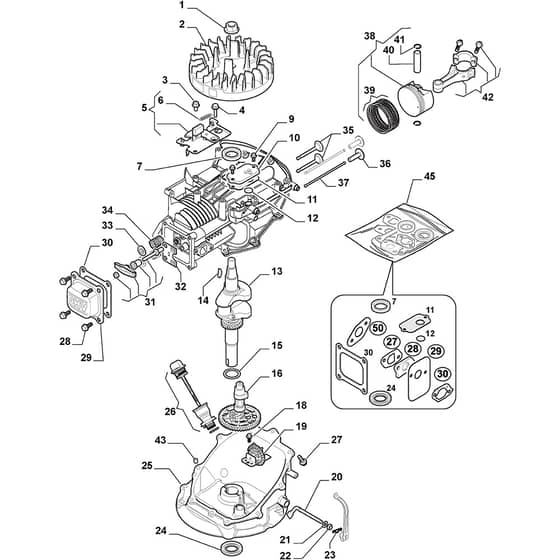

Stiga COMBI 50 SQ Parts Diagram

Product Name - COMBI 50 SQ

Model Year - 2019-2022

Model Type - MP1 504 SQ

Art.N - 294502848/ST1

Engine Model - ST 140 OHV Autochoke

	Part No.	Details
1	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
2	MO118550905/0 Available to backorder	Flywheel Ass.Y	£80.11 £66.76
4	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
5	MO118551483/0 Available to backorder	Flywheel Brake.Stop Switch Assy	£39.42 £32.85
7	MO118550300/0 Available to backorder	Oil Seal	£7.25 £6.04
9	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
12	MO118550902/0 Available to backorder	Valve	£1.97 £1.64
13	MO118551447/0 Available to backorder	Crankshaft	£105.58 £87.98
14	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
15	MO118550283/0 Available to backorder	Washer	£3.38 £2.82
16	MO118550890/0 Available to backorder	Camshaft Assy	£30.98 £25.82
45	MO118550940/0 Available to backorder	Engine Gasket Set	£25.36 £21.13
