COMBI 50 SEQ B - 2018-2019 - 294502528/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

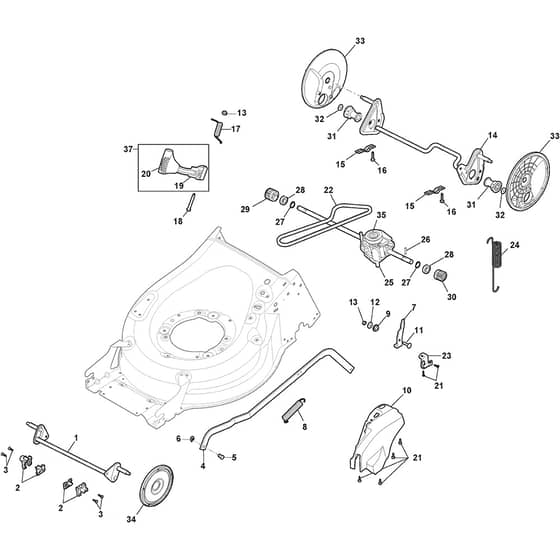

Stiga COMBI 50 SEQ B Parts Diagram

Product Name - COMBI 50 SEQ B

Model Year - 2018-2019

Model Type - MP1 504 SQE

Art.N - 294502528/ST1

Engine Model - B&S 575 IS series InStart

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302913/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH080824	£29.56 £24.63
1	MO381302881/0 Available to backorder	Front Wheel Axle	£35.20 £29.33
1	MO381302913/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH080823	£30.97 £25.81
2	MO322785305/1 In stock	Support From 01-9-2015	£2.68 £2.23
4	MO322869695/1 Available to backorder	Wheels Control Rod From S.N 20BA2WBH090897	£33.50 £27.92
5	MO122519820/0 Available to backorder	Pin	£2.12 £1.77
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO322778475/0 Available to backorder	Bracket	£2.81 £2.34
8	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
9	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
10	MO322055329/0 Available to backorder	Cover	£12.95 £10.79
11	MO112815270/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523040/0 In stock	Washer	£1.49 £1.24
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO381302895/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH091142	£38.00 £31.67
14	MO381302895/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH091143	£29.56 £24.63
15	MO322545152/0 In stock	Plate	£1.55 £1.29
16	MO112728697/0 In stock	Screw	£1.55 £1.29
17	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
18	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
19	MO322322855/0 Available to backorder	Wheels Adjusting Lever To S.N 20BA2WBH068104	£5.22 £4.35
19	MO322322915/0 Available to backorder	Wheels Adjusting Lever From S.N 20BA2WBH068105	£4.84 £4.03
20	MO322394527/0 Available to backorder	Knob Black with STIGA Logo	£4.97 £4.14
21	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
22	MO135063900/0 In stock	Belt	£9.17 £7.64
23	MO322778473/1 Available to backorder	Bracket From 01-9-2018	£2.12 £1.77
24	MO122450478/0 Available to backorder	Spring	£8.87 £7.39
25	MO181003115/0 Available to backorder	Gear Box	£124.58 £103.82
26	MO122753000/0 In stock	Pin	£1.55 £1.29
27	MO112608600/0 In stock	Seeger	£1.55 £1.29
28	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
29	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
30	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
31	MO322042066/0 Available to backorder	Bushing	£1.82 £1.52
32	MO112521371/0 Available to backorder	Washer	£1.55 £1.29
33	MO322600205/1 Available to backorder	Protection. Wheel	£3.79 £3.16
34	MO322600247/0 Available to backorder	Protection. Wheel	£8.18 £6.82
35	MO122601909/0 In stock	Pulley	£5.64 £4.70
