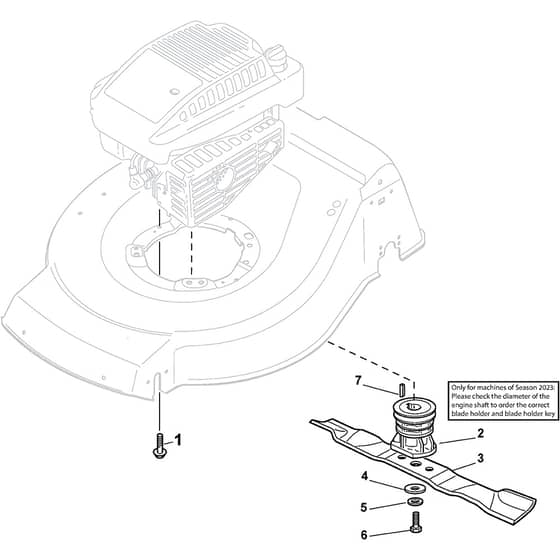

COMBI 48 SQ H - 2014 - 299486838/S14 - Stiga Rotary Mower Blade Diagram

Name: COMBI 48 SQ H - 2014 - 299486838/S14 - Stiga Rotary Mower Blade Diagram
SKU: combi_48_sq_h_299486838_s14_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_48_sq_h_299486838_s14_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 SQ H - 2014 - 299486838/S14 - Stiga Rotary Mower Blade Diagram

Description

Stiga COMBI 48 SQ H Parts Diagram

Product Name - COMBI 48 SQ H

Model Year - 2014

Model Type - NTL 484 W TRQ

Art.N - 299486838/S14

Engine Model - Honda GCV 140 OHC Autochoke

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122465608/3 In stock	Hub With Pulley. Crankshaft Ø 25 From 01-1-2019	£9.23 £7.69
3	MO181004458/0 In stock	Mulching Blade	£12.48 £10.40
4	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
5	MO112523080/0 In stock	Washer	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139150/0 In stock	Woodruff Key D.25mm	£2.11 £1.76
