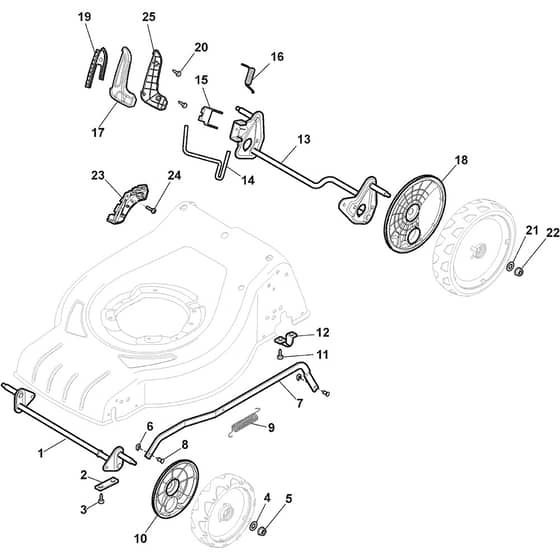

COMBI 48 SQ B - 2019-2020 - 295486828/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Name: COMBI 48 SQ B - 2019-2020 - 295486828/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram
SKU: combi_48_sq_b_295486828_st1_deck_and_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 SQ B - 2019-2020 - 295486828/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga COMBI 48 SQ B Parts Diagram

Product Name - COMBI 48 SQ B

Model Year - 2019-2020

Model Type - NTL 484 W TRQ

Art.N - 295486828/ST1

Engine Model - 625 E series Ready Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302821/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH054315	£26.69 £22.24
1	MO381302821/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH054316	£27.04 £22.53
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO322869683/0 Available to backorder	Rod. Height Adjustment To S.N 20CA2WBH077815	£18.59 £15.49
7	MO322869683/1 Available to backorder	Rod. Height Adjustment From S.N 20CA2WBH077816	£17.87 £14.89
8	MO122519820/0 Available to backorder	Pin	£2.12 £1.77
9	MO122446193/0 Available to backorder	Spring	£4.61 £3.84
10	MO322600247/0 Available to backorder	Protection. Wheel As Optional	£8.18 £6.82
11	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
12	MO322545152/0 In stock	Plate	£1.55 £1.29
13	MO381302817/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH061217	£28.56 £23.80
13	MO381302817/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH061216	£29.80 £24.83
14	MO322321553/0 Available to backorder	Lever. Height Adjustment	£3.10 £2.58
15	MO322557179/0 Available to backorder	Plate	£2.40 £2.00
16	MO122446198/1 Available to backorder	Spring From S.N SK8164185	£1.69 £1.41
17	MO322394550/0 In stock	Upper Handgrip Black	£2.68 £2.23
17	MO322394552/0 In stock	Upper Handgrip Grey NCS S8000-N	£2.66 £2.22
18	MO322600205/1 Available to backorder	Protection. Wheel	£3.79 £3.16
19	MO322394551/0 Available to backorder	Handgrip Black	£1.97 £1.64
20	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
21	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Nut	£1.55 £1.29
23	MO322735606/0 Available to backorder	Sector. Height Adjustment	£2.40 £2.00
24	MO112728697/0 In stock	Screw	£1.55 £1.29
25	MO322394559/0 Available to backorder	Lower H.Adj Knob Use 322394559.0	£2.12 £1.77
