COMBI 48 SQ - 2010-2011 - 299486844/S10 - Stiga Rotary Mower Blade Diagram

Name: COMBI 48 SQ - 2010-2011 - 299486844/S10 - Stiga Rotary Mower Blade Diagram
SKU: combi_48_sq_299486844_s10_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_48_sq_299486844_s10_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 SQ - 2010-2011 - 299486844/S10 - Stiga Rotary Mower Blade Diagram

Description

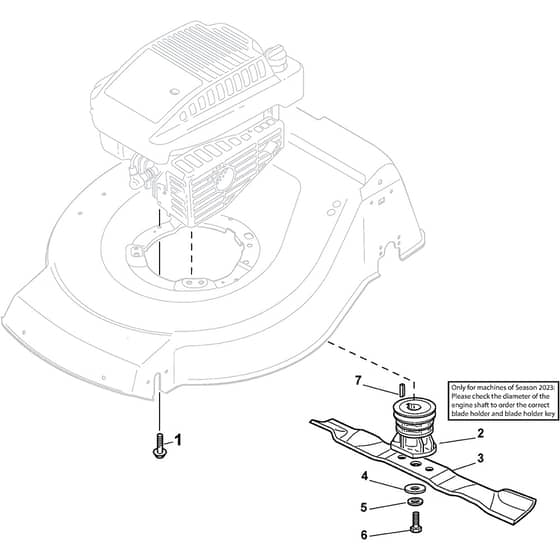

Stiga COMBI 48 SQ Parts Diagram

Product Name - COMBI 48 SQ

Model Year - 2010-2011

Model Type - NTL 484 W TRQ

Art.N - 299486844/S10

Engine Model - Stiga SA 45 OHV

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£9.30 £7.75
3	MO181004458/0 In stock	Mulching Blade	£12.48 £10.40
4	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
5	MO112523080/0 In stock	Washer	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139100/0 In stock	Woodruff Key 4 X 6.5 D.16 Uni6606 C40	£1.55 £1.29
