COMBI 48 SEQ - 2019-2021 - 2L0486548/ST1 - Stiga Rotary Mower Grass Catcher Diagram

Name: COMBI 48 SEQ - 2019-2021 - 2L0486548/ST1 - Stiga Rotary Mower Grass Catcher Diagram
SKU: combi_48_seq_2l0486548_st1_grass_catcher-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_48_seq_2l0486548_st1_grass_catcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 SEQ - 2019-2021 - 2L0486548/ST1 - Stiga Rotary Mower Grass Catcher Diagram

Description

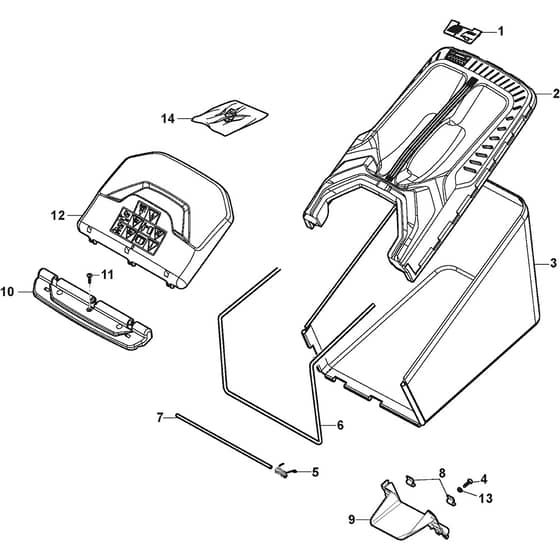

Stiga COMBI 48 SEQ Parts Diagram

Product Name - COMBI 48 SEQ

Model Year - 2019-2021

Model Type - CP1 484 WSQE

Art.N - 2L0486548/ST1

Engine Model - ST 170 LS OHV Autochoke

	Part No.	Details
1	MO322486497/0 Available to backorder	Rear Door	£1.55 £1.29
2	MO322486496/0 In stock	Grass-Box. Upper Part Grey	£30.98 £25.82
3	MO181102448/0 Available to backorder	Black Fabric Box with STIGA Logo	£46.32 £38.60
4	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
5	MO122450479/0 Available to backorder	Spring	£3.38 £2.82
6	MO122608525/2 In stock	Lower Stiffening If not available. use 122608525.1 From 01-9-2019	£13.12 £10.93
7	MO122517884/0 Available to backorder	Pin	£5.06 £4.22
8	MO322545233/0 Available to backorder	Clamp	£1.39 £1.16
9	MO322108393/0 Available to backorder	Conveyor	£6.05 £5.04
10	MO322109595/0 Available to backorder	Stone Guard Support. Yellow	£3.52 £2.93
11	MO112728697/0 In stock	Screw	£1.55 £1.29
12	MO322600357/1 Available to backorder	Stone Guard. Yellow	£13.18 £10.98
13	MO112523050/0 In stock	Washer	£1.57 £1.31
14	MO381008735/0 In stock	Plastic Pin	£2.24 £1.87
