COMBI 48 SEQ - 2019-2021 - 2L0486548/ST1 - Stiga Rotary Mower Deck Diagram

Name: COMBI 48 SEQ - 2019-2021 - 2L0486548/ST1 - Stiga Rotary Mower Deck Diagram
SKU: combi_48_seq_2l0486548_st1_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_48_seq_2l0486548_st1_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 SEQ - 2019-2021 - 2L0486548/ST1 - Stiga Rotary Mower Deck Diagram

Description

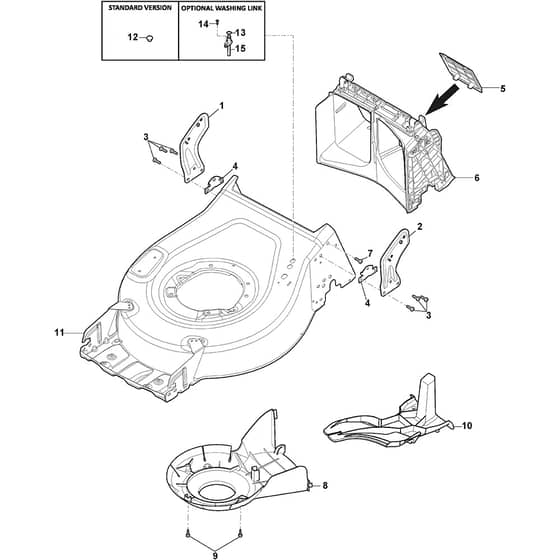

Stiga COMBI 48 SEQ Parts Diagram

Product Name - COMBI 48 SEQ

Model Year - 2019-2021

Model Type - CP1 484 WSQE

Art.N - 2L0486548/ST1

Engine Model - ST 170 LS OHV Autochoke

	Part No.	Details
1	MO381005235/2 Available to backorder	Bracket-Rh	£8.45 £7.04
2	MO381005237/2 Available to backorder	Bracket-Lh Grey Pearl	£8.45 £7.04
3	MO112727807/0 In stock	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
5	MO322600310/0 In stock	Rear Door Only for Electric Start Engine with ION battery	£5.06 £4.22
6	MO322108329/0 In stock	Rear Conveyor	£20.11 £16.76
7	MO112728697/0 In stock	Screw	£1.55 £1.29
8	MO322060242/2 In stock	Belt Protection As Optional	£11.54 £9.62
9	MO112728903/0 In stock	Screw As Optional	£1.39 £1.16
10	MO322140250/1 In stock	Mulching Deflector As Optional	£12.94 £10.78
11	MO381005035/0 Available to backorder	Grey Deck Side Discharge	£181.60 £151.33
12	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring NOT for battery models	£5.06 £4.22
14	MO112728450/0 In stock	Screw NOT for battery models	£1.55 £1.29
15	MO322034002/0 In stock	Washing Connection	£1.70 £1.42
