COMBI 48 SE B - 2018-2019 - 295486528/STX - Stiga Rotary Mower Blade Diagram

Description

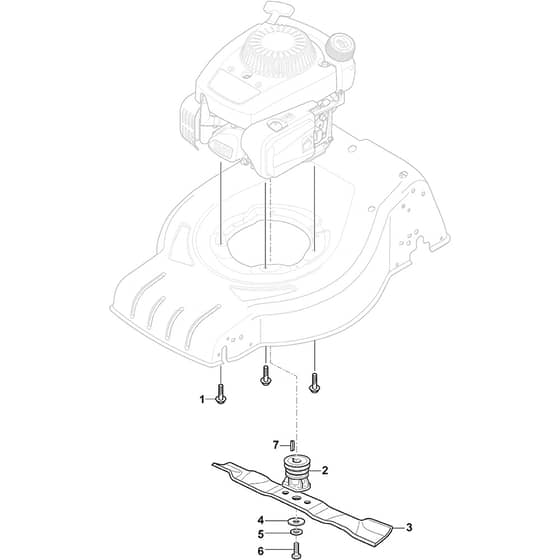

Stiga COMBI 48 SE B Parts Diagram

Product Name - COMBI 48 SE B

Model Year - 2018-2019

Model Type - CRL 484 WSE

Art.N - 295486528/STX

Engine Model - 575 IS series InStart

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£9.30 £7.75
3	MO181004460/0 In stock	Mulching Blade	£14.14 £11.78
4	MO122160400/0 In stock	Elastic Disc To 31-3-2018	£1.84 £1.53
4	MO322680021/0 Available to backorder	Washer From 01-9-2019	£1.26 £1.05
5	MO112508128/0 In stock	Elastic Disc From 01-1-2019	£1.33 £1.11
5	MO112523080/0 In stock	Washer To 31-3-2018	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139100/0 In stock	Woodruff Key 4 X 6.5 D.16 Uni6606 C40	£1.55 £1.29
