COMBI 48 S H - 2011-2013 - 295486034/S11 - Stiga Rotary Mower Handle Upper Part Diagram

Name: COMBI 48 S H - 2011-2013 - 295486034/S11 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: combi_48_s_h_295486034_s11_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_48_s_h_295486034_s11_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 S H - 2011-2013 - 295486034/S11 - Stiga Rotary Mower Handle Upper Part Diagram

Description

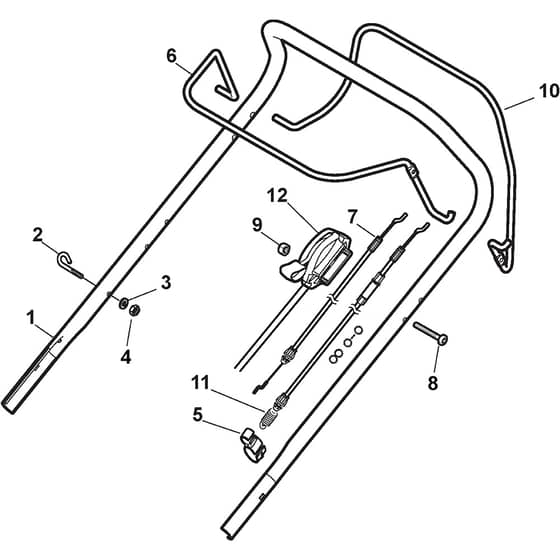

Stiga COMBI 48 S H Parts Diagram

Product Name - COMBI 48 S H

Model Year - 2011-2013

Model Type - CRL 484 WS

Art.N - 295486034/S11

Engine Model -

	Part No.	Details
1	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
3	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
5	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
6	MO181003363/1 In stock	Lever. Engine Brake Black Black From 01-9-2010	£14.93 £12.44
7	MO181030069/1 Available to backorder	Cable. Thread Engine Brake From 01-9-2012	£13.51 £11.26
8	MO112727788/0 Available to backorder	Screw	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO181003364/0 In stock	Drive Control Lever Black	£15.20 £12.67
11	MO381030051/1 In stock	Cable Rear Drive	£17.17 £14.31
12	MO181005517/0 In stock	Throttle Cable L.1020	£22.67 £18.89
