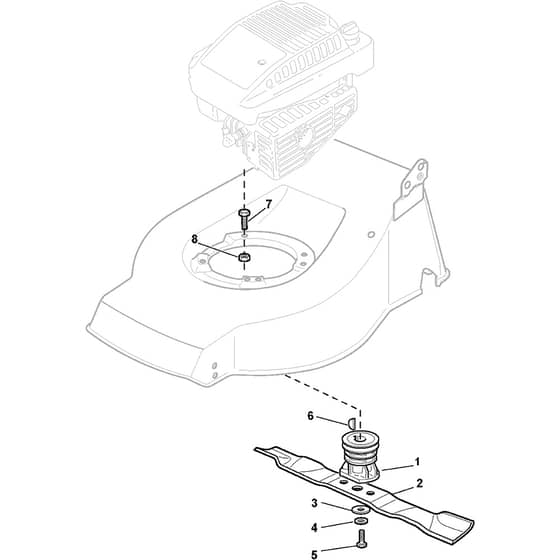

COMBI 48 S BW - 2010 - 294487023/GRN - Stiga Rotary Mower Blade Diagram

Description

Stiga COMBI 48 S BW Parts Diagram

Product Name - COMBI 48 S BW

Model Year - 2010

Model Type - TDL 484 W TR

Art.N - 294487023/GRN

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2010	£9.29 £7.74
2	MO181004346/3 In stock	Left Mulching. Blade From 01-9-2001	£14.15 £11.79
2	MO181004397/0 Available to backorder	Blade Winged	£22.88 £19.07
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
7	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
8	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.69 £1.41
