COMBI 48 S B - 2011-2013 - 295486024/S12 - Stiga Rotary Mower Deck Diagram

Name: COMBI 48 S B - 2011-2013 - 295486024/S12 - Stiga Rotary Mower Deck Diagram
SKU: combi_48_s_b_295486024_s12_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_48_s_b_295486024_s12_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 S B - 2011-2013 - 295486024/S12 - Stiga Rotary Mower Deck Diagram

Description

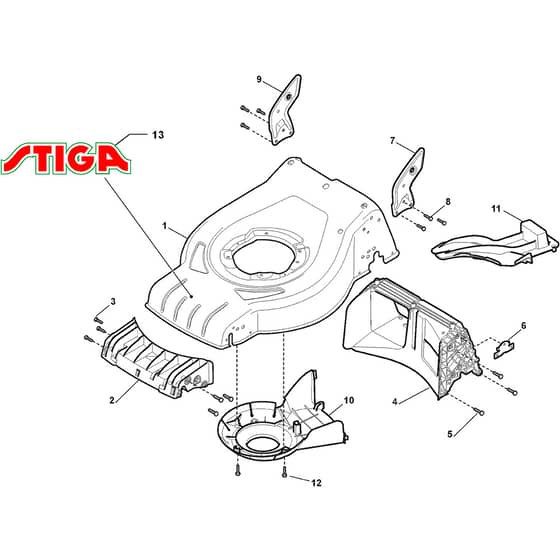

Stiga COMBI 48 S B Parts Diagram

Product Name - COMBI 48 S B

Model Year - 2011-2013

Model Type - CRL 484 WS

Art.N - 295486024/S12

Engine Model -

	Part No.	Details
1	MO381004933/0 Available to backorder	Black Deck	£131.60 £109.67
2	MO322108301/2 Available to backorder	Front Conveyor Assy	£14.86 £12.38
4	MO322108392/0 Available to backorder	Rear Conveyor Assy	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005179/0 Available to backorder	Bracket	£10.27 £8.56
8	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
9	MO381005177/0 Available to backorder	Bracket	£10.27 £8.56
10	MO322060242/2 In stock	Belt Protection	£11.54 £9.62
11	MO322140239/1 In stock	Mulching Deflector	£11.41 £9.51
12	MO112728903/0 In stock	Screw	£1.39 £1.16
13	MO114367494/2 Available to backorder	Emblem Decal Stiga 3D 93 X 19mm	£9.17 £7.64
