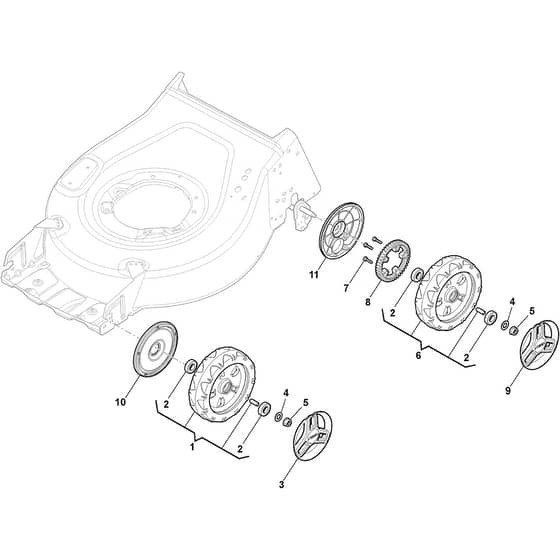

COMBI 48 S - 2024-2027 - 2L0482248/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: COMBI 48 S - 2024-2027 - 2L0482248/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: combi_48_s_2l0482248_st1_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_48_s_2l0482248_st1_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 S - 2024-2027 - 2L0482248/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga COMBI 48 S Parts Diagram

Product Name - COMBI 48 S

Model Year - 2024-2025

Model Type - CP1 484 S

Art.N - 2L0482248/ST1

Engine Model - ST 140 OHV Autochoke Powered by STIGA

	Part No.	Details
2	MO119216035/0 In stock	Bearing	£3.52 £2.93
4	MO112521350/0 In stock	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO381007416/3 Available to backorder	Wheel Ø 200 Only bearings NOT bushings From S.N 19JA2WBH009253	£17.60 £14.67
7	MO112728706/0 In stock	Screw	£1.60 £1.33
8	MO322120114/0 Available to backorder	Wheels Crown	£6.90 £5.75
9	MO322110744/0 Available to backorder	Hub Cap Grey	£3.52 £2.93
10	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.70 £1.42
11	MO322600239/0 Available to backorder	Inner Wheel Cover D.200	£3.79 £3.16
