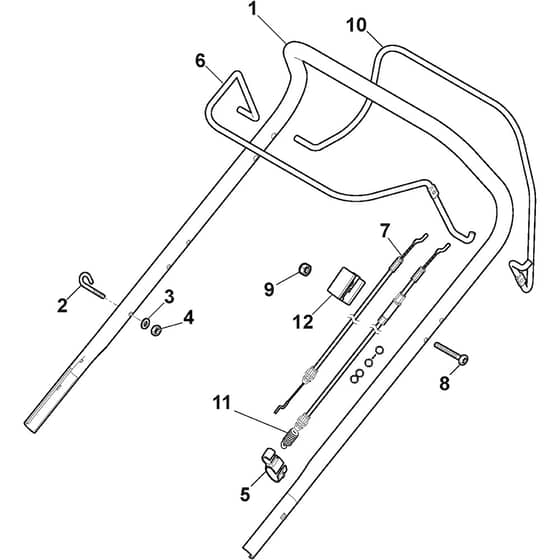

COMBI 48 S - 2024-2027 - 2L0482248/ST1 - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga COMBI 48 S Parts Diagram

Product Name - COMBI 48 S

Model Year - 2024-2025

Model Type - CP1 484 S

Art.N - 2L0482248/ST1

Engine Model - ST 140 OHV Autochoke Powered by STIGA

	Part No.	Details
1	MO381007606/2 Available to backorder	Yellow Upper Handle With Rubberized Grip	£42.22 £35.18
2	MO122430313/0 In stock	Guide Spring not for IS Engine	£3.92 £3.27
3	MO112521330/0 Available to backorder	Washer not for IS Engine	£1.63 £1.36
5	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
6	MO181003363/1 In stock	Lever. Engine Brake Black Black	£14.93 £12.44
7	MO181030105/0 In stock	Cable. Thread Engine Brake	£14.58 £12.15
8	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO181003364/0 In stock	Drive Control Lever Black	£15.20 £12.67
11	MO381030143/0 In stock	Cable Rear Drive	£19.76 £16.47
12	MO322551685/0 In stock	Cable Holder Block D.22	£7.52 £6.27
