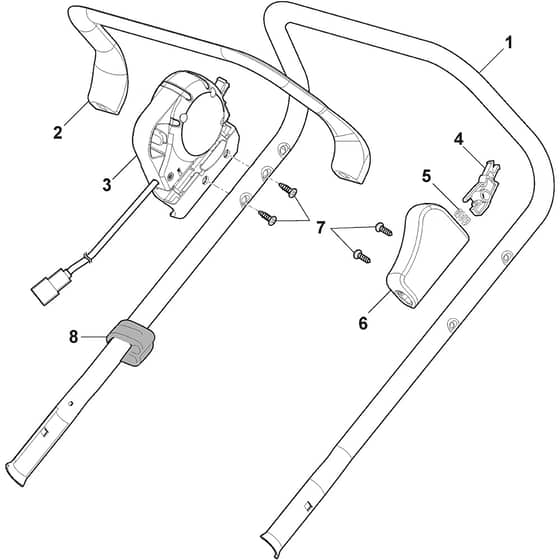

COMBI 48 Q MAE - 2019-2021 - 295485868/ST1 - Stiga Rotary Mower Handle Upper Part Diagram

Name: COMBI 48 Q MAE - 2019-2021 - 295485868/ST1 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: combi_48_q_mae_295485868_st1_handle_upper_part-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 48 Q MAE - 2019-2021 - 295485868/ST1 - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga COMBI 48 Q MAE Parts Diagram

Product Name - COMBI 48 Q MAE

Model Year - 2019-2021

Model Type - CRL 480 WQ LI 60

Art.N - 295485868/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007646/0 Available to backorder	Handle. Upper Part Yellow	£30.97 £25.81
2	MO322322881/2 Available to backorder	Lever. Engine Brake Black From S.N 19KA2WBH001409	£7.88 £6.57
3	MO381600575/1 Available to backorder	Dead Hand Switch - Battery	£33.79 £28.16
4	MO322230350/2 Available to backorder	Fulcrum Pin	£1.97 £1.64
5	MO122450115/0 Available to backorder	Spring	£1.94 £1.62
6	MO322785144/1 Available to backorder	Support	£2.81 £2.34
7	MO112728701/0 Available to backorder	Screw	£1.40 £1.17
8	MO122192000/1 Available to backorder	Clamp	£1.82 £1.52
