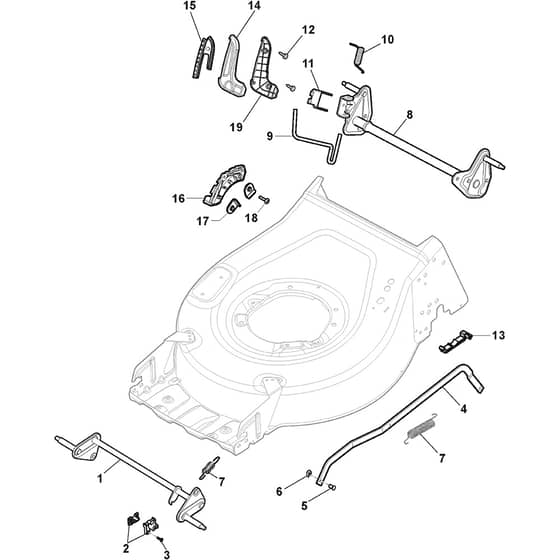

COMBI 48 Q - 2019-2021 - 2L0485848/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga COMBI 48 Q Parts Diagram

Product Name - COMBI 48 Q

Model Year - 2019-2021

Model Type - CP1 484 WQ

Art.N - 2L0485848/ST1

Engine Model - ST 140 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302935/1 Available to backorder	Axle. Front Wheels From S.N 20BA2WBH045271	£29.56 £24.63
2	MO322785305/1 In stock	Support	£2.68 £2.23
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869737/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH050796	£18.16 £15.13
5	MO122519823/0 In stock	Pin	£2.26 £1.88
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO122450494/0 In stock	Spring	£4.78 £3.98
8	MO381302857/1 Available to backorder	Rear Wheel Axle To S.N 20CA2WBH031534	£53.50 £44.58
8	MO381302857/2 Available to backorder	Rear Wheel Axle From S.N 20CA2WBH031535	£49.26 £41.05
9	MO322321555/3 Available to backorder	Lever. Height Adjustment From S.N 19DA2WBH009066	£3.38 £2.82
10	MO322557181/0 Available to backorder	Plate	£2.12 £1.77
11	MO122446198/1 Available to backorder	Spring	£1.69 £1.41
12	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
13	MO322785500/0 In stock	Support	£1.82 £1.52
14	MO322394552/0 In stock	Upper Handgrip Grey NCS S8000-N	£2.66 £2.22
14	MO322394550/0 In stock	Upper Handgrip Black	£2.68 £2.23
15	MO322394551/0 Available to backorder	Handgrip	£1.97 £1.64
16	MO322735608/0 Available to backorder	Sector. Height Adjustment	£2.12 £1.77
17	MO322545232/1 Available to backorder	Plate From S.N 19BA2WBH044678 To S.N 20DA2WBH028504	£1.66 £1.38
17	MO322545232/2 Available to backorder	Plate From S.N 20DA2WBH028505	£1.55 £1.29
18	MO112727807/0 In stock	Screw	£1.55 £1.29
19	MO322394559/0 Available to backorder	Lower H.Adj Knob Use 322394559.0	£2.12 £1.77
