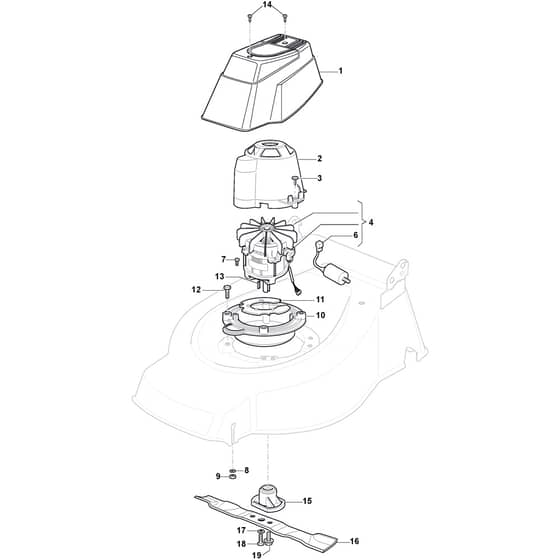

Combi 48 E - 2018-2019 - 295487068/STX - Stiga Rotary Mower Electric Motor/Blade Diagram

Name: Combi 48 E - 2018-2019 - 295487068/STX - Stiga Rotary Mower Electric Motor/Blade Diagram
SKU: combi_48_e_295487068_stx_electric_motor_blade-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Combi 48 E - 2018-2019 - 295487068/STX - Stiga Rotary Mower Electric Motor/Blade Diagram

Description

Stiga Combi 48 E Parts Diagram

Product Name - Combi 48 E

Model Year - 2018-2019

Model Type - CRL 480 W

Art.N - 295487068/STX

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322055139/0 Available to backorder	Cover. Yellow	£16.12 £13.43
2	MO322785210/1 Available to backorder	Support. Cover	£6.76 £5.63
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
4	MO118563719/0 Available to backorder	Electric Motor 1600W 1600W 230V.50HZ	£161.89 £134.91
6	MO118222045/0 Available to backorder	Condenser 16 Μf (16 uF)	£19.30 £16.08
7	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange	£6.60 £5.50
11	MO322720360/2 Available to backorder	Ventilation Screen	£3.24 £2.70
12	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
15	MO322463186/3 Available to backorder	Blade Hub	£8.08 £6.73
16	MO181004460/0 In stock	Mulching Blade	£14.15 £11.79
16	MO181004397/0 Available to backorder	Blade Winged	£22.88 £19.07
17	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
18	MO112793102/0 In stock	Screw	£1.55 £1.29
19	MO381004352/1 In stock	Screw	£4.08 £3.40
