Combi 48 E - 2012 - 295487064/S11 - Stiga Rotary Mower Electric Motor/Blade Diagram

Name: Combi 48 E - 2012 - 295487064/S11 - Stiga Rotary Mower Electric Motor/Blade Diagram
SKU: combi_48_e_295487064_s11_electric_motor_blade-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Combi 48 E - 2012 - 295487064/S11 - Stiga Rotary Mower Electric Motor/Blade Diagram

Description

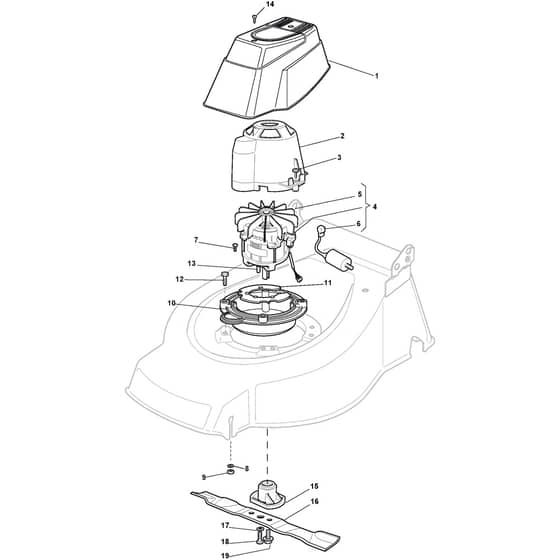

Stiga Combi 48 E Parts Diagram

Product Name - Combi 48 E

Model Year - 2012

Model Type - CRL 480 W

Art.N - 295487064/S11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122055045/1 Available to backorder	Cover. Black	£10.20 £8.50
1	MO322055139/0 Available to backorder	Cover. Yellow	£16.12 £13.43
2	MO322785061/1 Available to backorder	Support. Cover From 01-9-2006	£5.92 £4.93
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
5	MO118740054/0 Available to backorder	Fan Motor Atb ATB	£9.14 £7.62
5	MO118740051/0 Available to backorder	Fan RST To 31-8-2007	£4.97 £4.14
6	MO118222045/0 Available to backorder	Condenser 16 Μf (Atb - 1600W) From 01-9-2001	£19.30 £16.08
6	MO118222038/0 Available to backorder	Condenser (RST - HLT 1600W) To 31-8-2007	£30.97 £25.81
7	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange From 01-9-2007	£6.60 £5.50
11	MO322720360/2 Available to backorder	Ventilation Screen From 01-9-2007	£3.24 £2.70
12	MO112793701/0 Available to backorder	Screw From 01-9-2013	£1.49 £1.24
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
15	MO322463186/3 Available to backorder	Blade Hub From 01-9-2007	£8.08 £6.73
16	MO181004460/0 In stock	Mulching Blade	£14.15 £11.79
17	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
18	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
19	MO381004352/1 In stock	Screw From 01-9-2010	£4.08 £3.40
