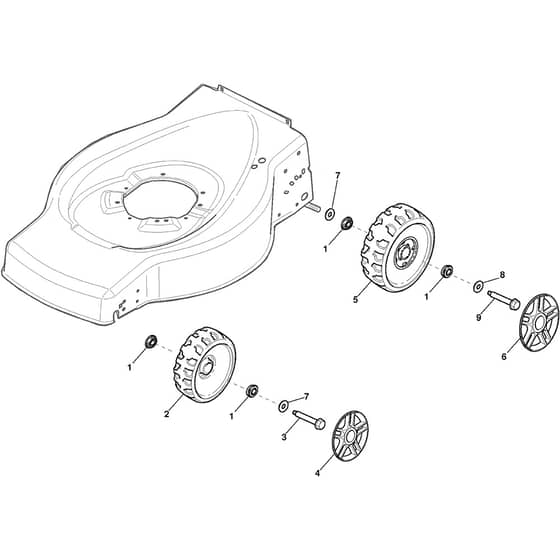

COMBI 46 B - 2009-2010 - 299174621/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: COMBI 46 B - 2009-2010 - 299174621/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: combi_46_b_299174621_st9_wheels_and_hub_caps-group
Price: 1.31 GBP
Availability: InStock

Part No. combi_46_b_299174621_st9_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 46 B - 2009-2010 - 299174621/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga COMBI 46 B Parts Diagram

Product Name - COMBI 46 B

Model Year - 2009-2010

Model Type - ESL 464

Art.N - 299174621/ST9

Engine Model -

	Part No.	Details
1	MO122122206/0 In stock	Bearing	£1.84 £1.53
2	MO322686091/1 In stock	Wheel To 31-8-2006	£6.77 £5.64
3	MO122524322/0 In stock	Pin To 31-8-2006	£4.37 £3.64
4	MO322110729/0 In stock	Hub Cap Grey Grey	£2.69 £2.24
5	MO322686092/0 Available to backorder	Wheel Ø 190 From 01-9-2006	£5.92 £4.93
5	MO381007347/0 Available to backorder	Wheel To 31-8-2006	£13.84 £11.53
6	MO322110492/0 Available to backorder	Hub Cap Grey Grey	£2.29 £1.91
7	MO122675100/0 Available to backorder	Washer	£1.92 £1.60
8	MO112523050/0 In stock	Washer	£1.57 £1.31
9	MO122524341/0 In stock	Wheel Bolt	£7.50 £6.25
