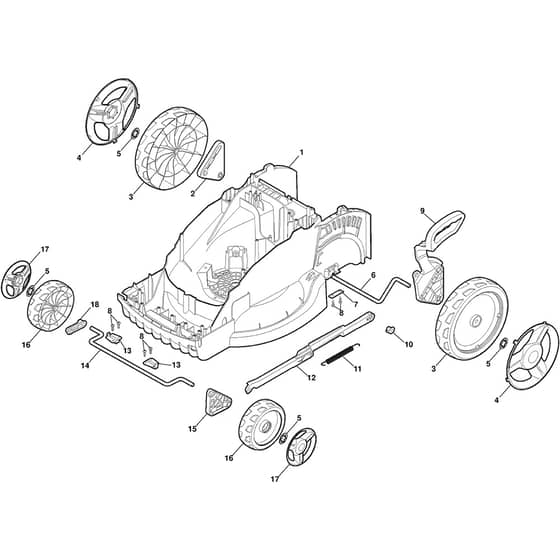

COMBI 40 AE PLUS - 2013 - 294385164/S13 - Stiga Rotary Mower Deck Wheels and Height Adjusting Diagram

Description

Stiga COMBI 40 AE PLUS Parts Diagram

Product Name - COMBI 40 AE PLUS

Model Year - 2013

Model Type - EL 380 LI

Art.N - 294385164/S13

Engine Model -

	Part No.	Details
1	MO322066783/0 Available to backorder	Deck Stiga Grey	£90.08 £75.07
2	MO322785387/0 Available to backorder	Support. Wheel To 31-8-2014	£2.11 £1.76
2	MO322785450/1 Available to backorder	Support. Wheel From 01-6-2019	£1.97 £1.64
3	MO322686105/0 Available to backorder	Wheel	£9.08 £7.57
4	MO322110684/0 Available to backorder	Hub Cap Yellow	£3.10 £2.58
5	MO112604903/0 In stock	Washer	£1.55 £1.29
6	MO122033425/0 Available to backorder	Rear Wheel Axle	£9.58 £7.98
7	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
8	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
9	MO322785414/0 Available to backorder	Lever. Height Adjustment To 31-8-2012	£14.64 £12.20
9	MO322785414/2 Available to backorder	Lever. Height Adjustment From 01-9-2017	£16.13 £13.44
10	MO322524354/0 In stock	Pin	£1.55 £1.29
11	MO122446195/0 Available to backorder	Spring	£2.82 £2.35
12	MO322869690/0 In stock	Rod. Height Adjustment From 01-9-2014	£8.00 £6.67
13	MO322785415/0 Available to backorder	Plate	£1.97 £1.64
14	MO122033424/0 Available to backorder	Rear Wheel Axle	£9.28 £7.73
15	MO322785438/0 In stock	Support. Wheel From 01-9-2014	£2.94 £2.45
16	MO322686104/0 In stock	Wheel	£5.47 £4.56
17	MO322110699/0 Available to backorder	Hub Cap Yellow	£1.55 £1.29
18	MO322785449/0 Available to backorder	Support. Wheel From 01-9-2014	£1.63 £1.36
