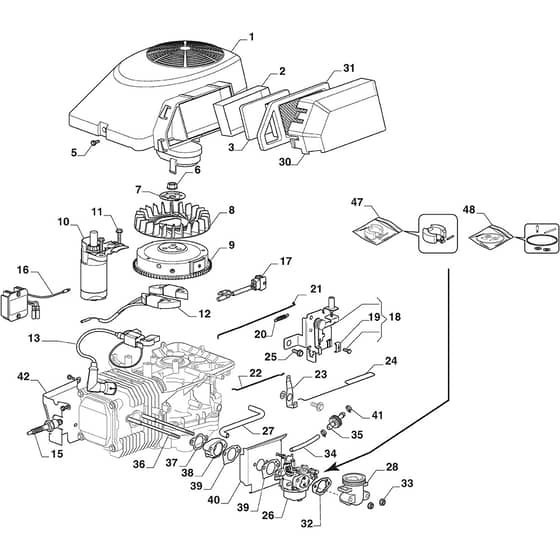

COMBI 372 - 2022-2025 - 2T0210481/ST2 - Stiga Ride On Mower Carburettor Diagram

Name: COMBI 372 - 2022-2025 - 2T0210481/ST2 - Stiga Ride On Mower Carburettor Diagram
SKU: combi_372_2t0210481_st2_carburettor-group
Price: 1.29 GBP
Availability: InStock

Part No. combi_372_2t0210481_st2_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 372 - 2022-2025 - 2T0210481/ST2 - Stiga Ride On Mower Carburettor Diagram

Description

Stiga COMBI 372 Parts Diagram

Product Name - COMBI 372

Model Year - 2022-2025

Model Type - F 72 Hydro F.L.

Art.N - 2T0210481/ST2

Engine Model - ST 400

	Part No.	Details
1	MO118551217/0 Available to backorder	Cover Assy	£50.69 £42.24
2	MO118551273/0 Available to backorder	Container	£2.94 £2.45
3	MO118550527/0 Available to backorder	Pre-Filter	£7.02 £5.85
5	MO118552509/0 Available to backorder	Bolt	£1.55 £1.29
6	MO118550237/0 Available to backorder	Nut	£3.38 £2.82
7	MO118550236/0 Available to backorder	Starter Cup	£6.06 £5.05
8	MO118550235/1 Available to backorder	Flywheel Fan	£24.05 £20.04
9	MO118550234/2 Available to backorder	Flywheel Ass.Y	£215.46 £179.55
10	MO118552635/0 Available to backorder	Start Motor Assy	£155.47 £129.56
11	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
12	MO118551441/0 Available to backorder	Coil Assy. Charge	£49.70 £41.42
13	MO118551438/0 In stock	Elettronic Coil	£41.74 £34.78
15	3381 In stock	Spark Plug	£4.20 £3.50
16	MO118551428/1 In stock	Rectfier	£46.34 £38.62
17	MO118551439/0 Available to backorder	Output Wire. Rectifier	£12.80 £10.67
18	MO118550331/1 Available to backorder	Remote Control Assy	£42.22 £35.18
20	MO118550213/0 Available to backorder	Spring	£2.11 £1.76
21	MO118551219/0 Available to backorder	Governor Link	£5.34 £4.45
22	MO118551218/0 Available to backorder	Rod Choke	£4.78 £3.98
24	MO118551221/0 Available to backorder	Throttle Rod	£2.94 £2.45
26	MO118552602/0 Available to backorder	Carburettor	£85.92 £71.60
27	MO118550225/1 Available to backorder	Breather Fuel Pipe	£8.86 £7.38
28	MO118551512/0 Available to backorder	Intake Manifold Assy	£19.86 £16.55
30	MO118550322/0 Available to backorder	Air Cleaner Cover	£30.90 £25.75
31	MO118550321/0 In stock	Air Filter	£16.74 £13.95
32	MO118550764/0 Available to backorder	Air Filter Gasket	£5.65 £4.71
48	MO118550442/0 Available to backorder	Carburettor Gasket Set	£15.78 £13.15
