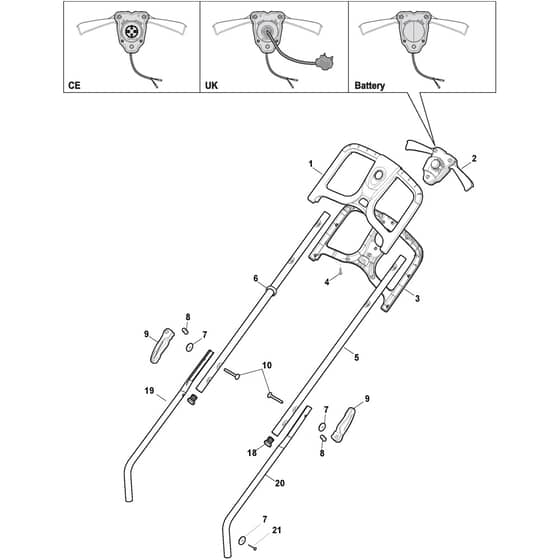

Combi 36 E - 2013 - 294340064/S14 - Stiga Rotary Mower Handle, Upper Part Diagram

Name: Combi 36 E - 2013 - 294340064/S14 - Stiga Rotary Mower Handle, Upper Part Diagram
SKU: combi_36_e_294340064_s14_handle_upper_part-group
Price: 1.22 GBP
Availability: InStock

Part No. combi_36_e_294340064_s14_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Combi 36 E - 2013 - 294340064/S14 - Stiga Rotary Mower Handle, Upper Part Diagram

Description

Stiga Combi 36 E Parts Diagram

Product Name - Combi 36 E

Model Year - 2013

Model Type - EL 340

Art.N - 294340064/S14

Engine Model -

	Part No.	Details
1	MO322291068/0 Available to backorder	Upper Half Handgrip Switch From 01-1-2014	£13.94 £11.62
2	MO381600539/1 Available to backorder	Dead Hand Switch Ce. Yellow From 01-9-2013	£38.00 £31.67
2	MO381600537/1 Available to backorder	Dead Hand Switch Uk From 01-9-2013	£123.89 £103.24
3	MO322291069/0 Available to backorder	Lower Half Handgrip Switch From 01-9-2013	£12.80 £10.67
4	MO112728713/0 Available to backorder	Screw	£1.46 £1.22
5	MO381007532/0 Available to backorder	Handle. Upper Part	£6.77 £5.64
6	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
7	MO112523050/0 In stock	Washer	£1.57 £1.31
8	MO122524352/0 In stock	Pin	£3.52 £2.93
9	MO322319519/1 Available to backorder	Fixing Lever Handle From 01-9-2017	£2.40 £2.00
9	MO322319520/0 Available to backorder	Fixing Lever Handle To 31-8-2014	£2.40 £2.00
9	MO322319526/1 Available to backorder	Fixing Lever Handle From 01-9-2017	£2.40 £2.00
10	MO122943016/0 In stock	Screw	£1.55 £1.29
18	MO118566116/0 Available to backorder	Cap	£2.24 £1.87
19	MO381007534/0 Available to backorder	Right Lower Handle. Grey	£7.66 £6.38
20	MO381007535/0 Available to backorder	Left Lower Handle. Grey	£8.86 £7.38
21	MO112728450/0 In stock	Screw	£1.55 £1.29
