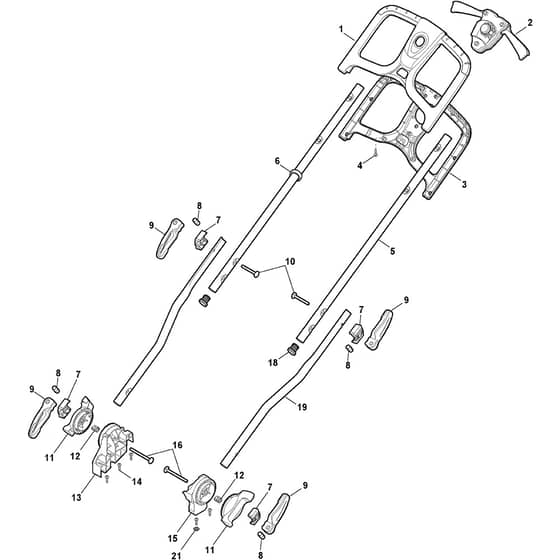

COMBI 344e Kit - 2023-2025 - 294426068/UKS - Stiga Rotary Mower Handle Diagram

Name: COMBI 344e Kit - 2023-2025 - 294426068/UKS - Stiga Rotary Mower Handle Diagram
SKU: combi_344e_kit_294426068_uks_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 344e Kit - 2023-2025 - 294426068/UKS - Stiga Rotary Mower Handle Diagram

Description

Stiga COMBI 344e Kit Parts Diagram

Product Name - COMBI 344e Kit

Model Year - 2023-2025

Model Type - EL 420 LI 48L

Art.N - 294426068/UKS

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322291070/0 Available to backorder	Upper Half Handgrip Switch	£21.89 £18.24
2	MO381600558/0 Available to backorder	Dead Hand Switch - Battery	£42.17 £35.14
3	MO322291071/0 Available to backorder	Lower Half Handgrip Switch	£21.40 £17.83
4	MO112728713/0 Available to backorder	Screw	£1.40 £1.17
5	MO381007551/1 Available to backorder	Upper Handle. Grey Grey To 31-8-2021	£10.63 £8.86
5	MO381007514/1 Available to backorder	Upper Handle. Black Black From 01-9-2021	£11.12 £9.27
6	MO122192000/1 Available to backorder	Clamp	£1.82 £1.52
7	MO322680022/1 Available to backorder	Clamp	£2.40 £2.00
8	MO122524352/0 In stock	Pin	£3.52 £2.93
9	MO322319550/0 Available to backorder	Fixing Lever Handle. Grey Grey	£1.62 £1.35
10	MO122943016/0 Available to backorder	Screw	£1.55 £1.29
11	MO322246102/0 Available to backorder	Handle Joint	£4.08 £3.40
12	MO122430210/0 Available to backorder	Spring	£1.69 £1.41
13	MO322745055/0 Available to backorder	Right Joint	£7.31 £6.09
14	MO112728714/0 Available to backorder	Screw	£1.55 £1.29
15	MO322745056/0 Available to backorder	Left Joint	£7.31 £6.09
16	MO122943019/0 Available to backorder	Bolt	£1.69 £1.41
18	MO118566116/0 Available to backorder	Cap	£2.26 £1.88
19	MO381007528/0 Available to backorder	Lower Handle. Grey Grey To 31-8-2021	£10.63 £8.86
19	MO381007513/0 Available to backorder	Lower Handle. Black Black From 01-9-2021	£10.98 £9.15
21	MO112521320/0 Available to backorder	Washer M5 5.3 X 10 X 1	£1.55 £1.29
