COMBI 336e - 2022 - 294344068/ST2 - Stiga Rotary Mower Handle Diagram

Name: COMBI 336e - 2022 - 294344068/ST2 - Stiga Rotary Mower Handle Diagram
SKU: combi_336e_294344068_st2_handle-group
Price: 1.22 GBP
Availability: InStock

Part No. combi_336e_294344068_st2_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 336e - 2022 - 294344068/ST2 - Stiga Rotary Mower Handle Diagram

Description

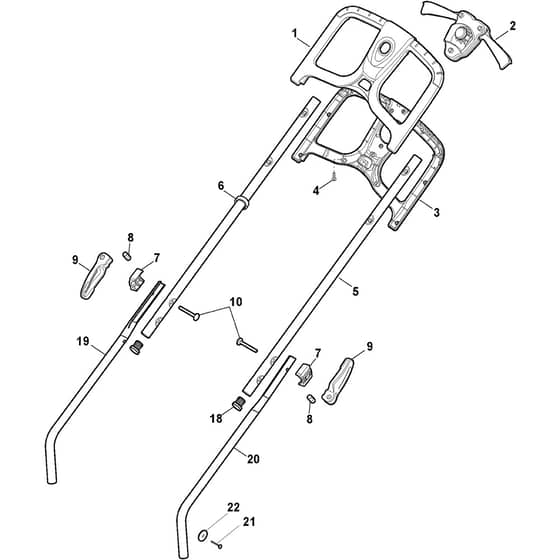

Stiga COMBI 336e Parts Diagram

Product Name - COMBI 336e

Model Year - 2022

Model Type - EL 340 LI 48L

Art.N - 294344068/ST2

Engine Model -

	Part No.	Details
1	MO322291068/0 Available to backorder	Upper Half Handgrip Switch	£13.94 £11.62
2	MO381600561/0 Available to backorder	Dead Hand Switch	£40.82 £34.02
3	MO322291069/0 Available to backorder	Lower Half Handgrip Switch	£12.80 £10.67
4	MO112728713/0 Available to backorder	Screw	£1.46 £1.22
5	MO381007532/0 Available to backorder	Handle. Upper Part Black	£6.77 £5.64
5	MO381007549/0 Available to backorder	Upper Handle. Grey Grey	£6.77 £5.64
6	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
7	MO322680022/1 Available to backorder	Clamp	£2.40 £2.00
8	MO122524352/0 In stock	Pin	£3.52 £2.93

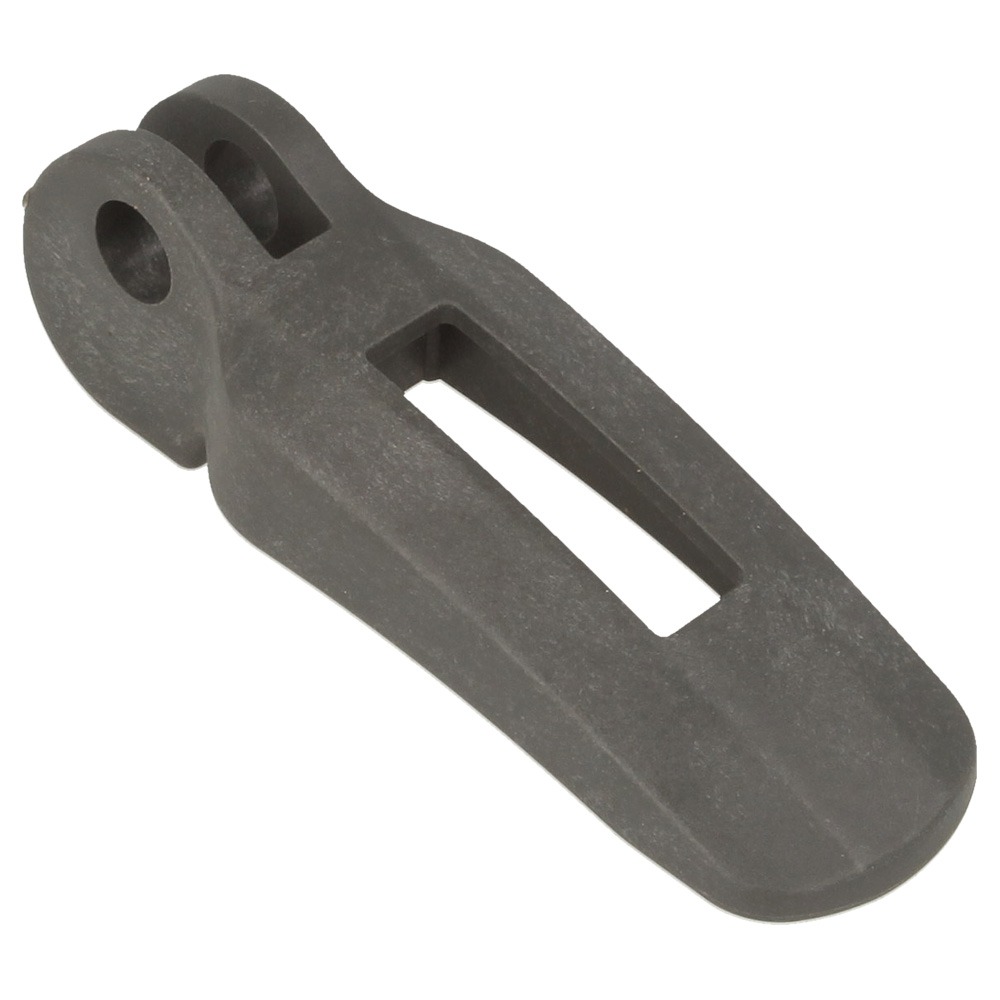

9	MO322319550/0 Available to backorder	Fixing Lever Handle. Grey Grey	£1.62 £1.35
10	MO122943016/0 In stock	Screw	£1.55 £1.29
18	MO118566116/0 Available to backorder	Cap	£2.24 £1.87

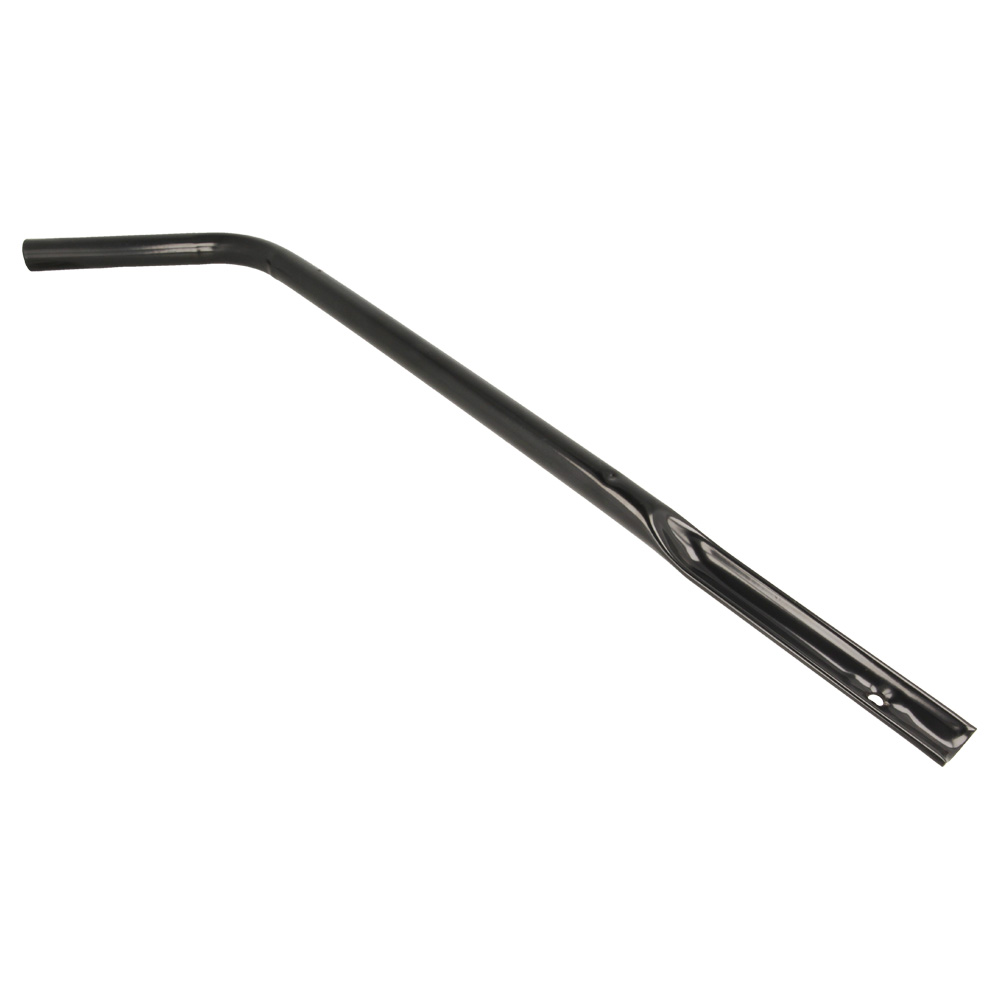

19	MO381007529/0 Available to backorder	Right Lower Handle. Black Black	£9.17 £7.64
19	MO381007534/0 Available to backorder	Right Lower Handle. Grey Grey	£7.66 £6.38
20	MO381007535/0 Available to backorder	Left Lower Handle. Grey Grey	£8.86 £7.38

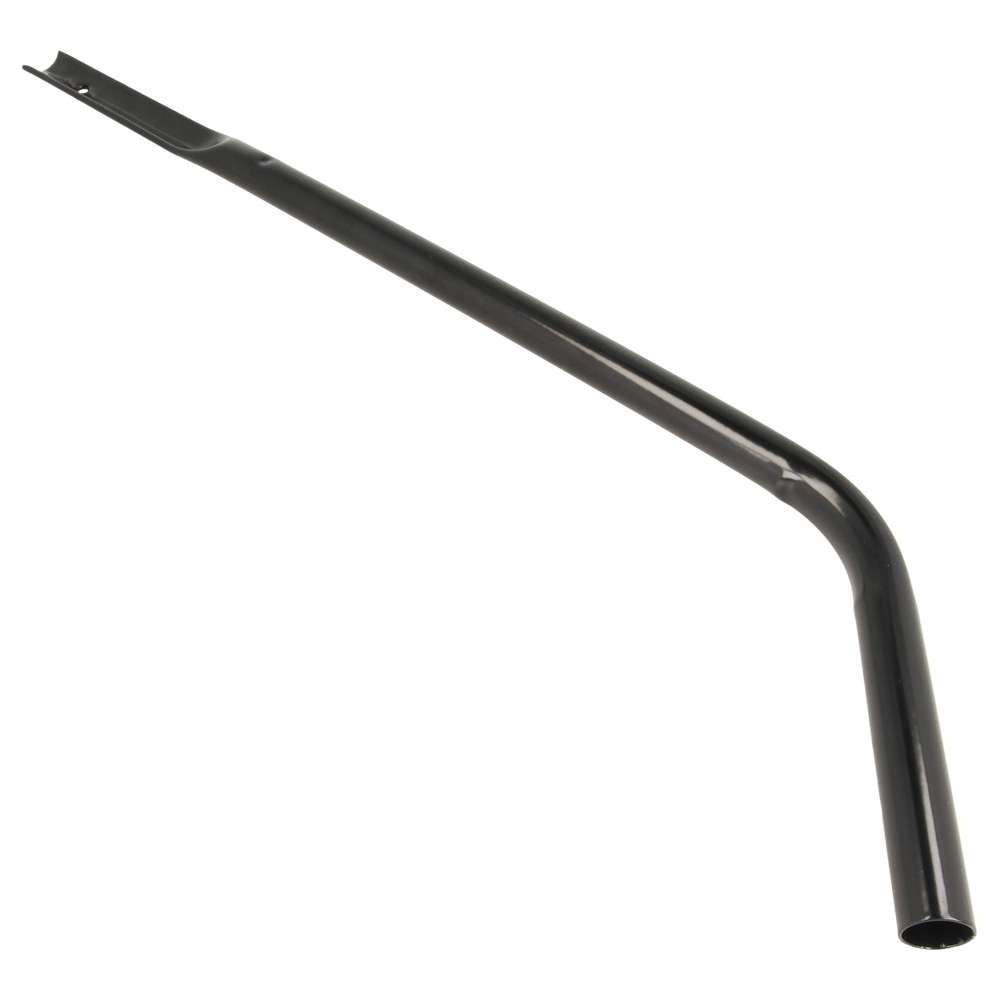

20	MO381007530/0 Available to backorder	Left Lower Handle. Black Black	£9.00 £7.50
21	MO112728450/0 In stock	Screw	£1.55 £1.29
22	MO112523020/0 In stock	Washer M5 5.5 X 15 X 1.6	£1.55 £1.29
