COMBI 3072 H - 2014-2020 - 2T0220281/14 - Stiga Ride On Mower Options Diagram

Name: COMBI 3072 H - 2014-2020 - 2T0220281/14 - Stiga Ride On Mower Options Diagram
SKU: combi_3072_h_2t0220281_14_options-group
Price: 0.87 GBP
Availability: InStock

Part No. combi_3072_h_2t0220281_14_options-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

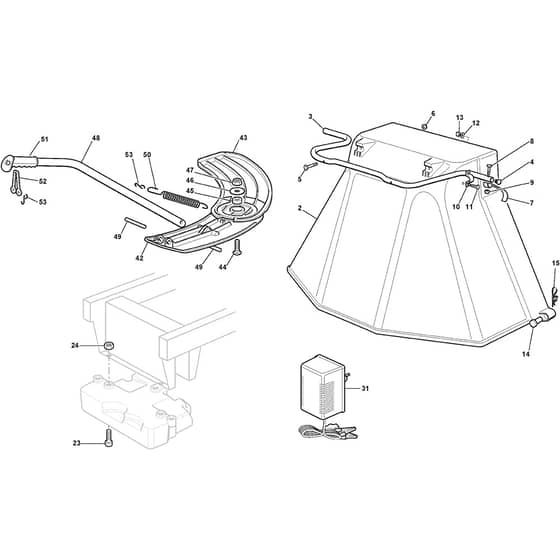

COMBI 3072 H - 2014-2020 - 2T0220281/14 - Stiga Ride On Mower Options Diagram

Description

Stiga COMBI 3072 H Parts Diagram

Product Name - COMBI 3072 H

Model Year - 2014-2020

Model Type - F 72 Hydro F.L.

Art.N - 2T0220281/14

Engine Model - PowerBuilt 3130 AVS

	Part No.	Details
1	MO484598062/0 Available to backorder	Ejection Guard	£84.46 £70.38
3	MO327869053/0 Available to backorder	Support	£37.42 £31.18
4	MO118566113/0 Available to backorder	Cap	£1.55 £1.29
5	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
7	MO325547053/0 Available to backorder	Plate	£14.82 £12.35
8	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
11	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523020/0 In stock	Washer	£1.55 £1.29
13	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
14	MO125510022/1 In stock	Pin From 01-9-2012	£3.10 £2.58
15	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
31	MO1134-9250-01 In stock	Battery Charger 12V 1A - Ce Plugg EU plug	£60.08 £50.07
42	MO327140055/0 Available to backorder	Deflector. Rear	£7.74 £6.45
43	MO327140054/0 Available to backorder	Deflector. Front	£7.74 £6.45
44	MO112818700/0 In stock	Screw	£1.55 £1.29
45	MO127047013/1 Available to backorder	Bushing From 01-9-2013	£1.92 £1.60
46	MO322672152/0 Available to backorder	Antifriction Washer	£1.84 £1.53
47	MO112155000/0 In stock	Nut	£1.55 £1.29
48	MO327394003/2 Available to backorder	Handle From 01-9-2011	£66.02 £55.02
49	MO127510116/0 Available to backorder	Pin	£8.23 £6.86
50	MO125430229/1 Available to backorder	Brake Spring	£8.38 £6.98
51	MO325280000/1 In stock	Handgrip	£3.10 £2.58
52	MO125840011/1 In stock	Tie Rod From 01-9-2011	£7.18 £5.98
53	MO125253004/0 In stock	Fixing Hook	£1.55 £1.29
